Interior Lights Dimming Schematics
>>
Rear Wiper/Washer Sw., Roof Beacon Sw. an Selectable Ride Sw.
Rear Wiper/Washer Sw., Roof Beacon Sw. an Selectable Ride Sw.

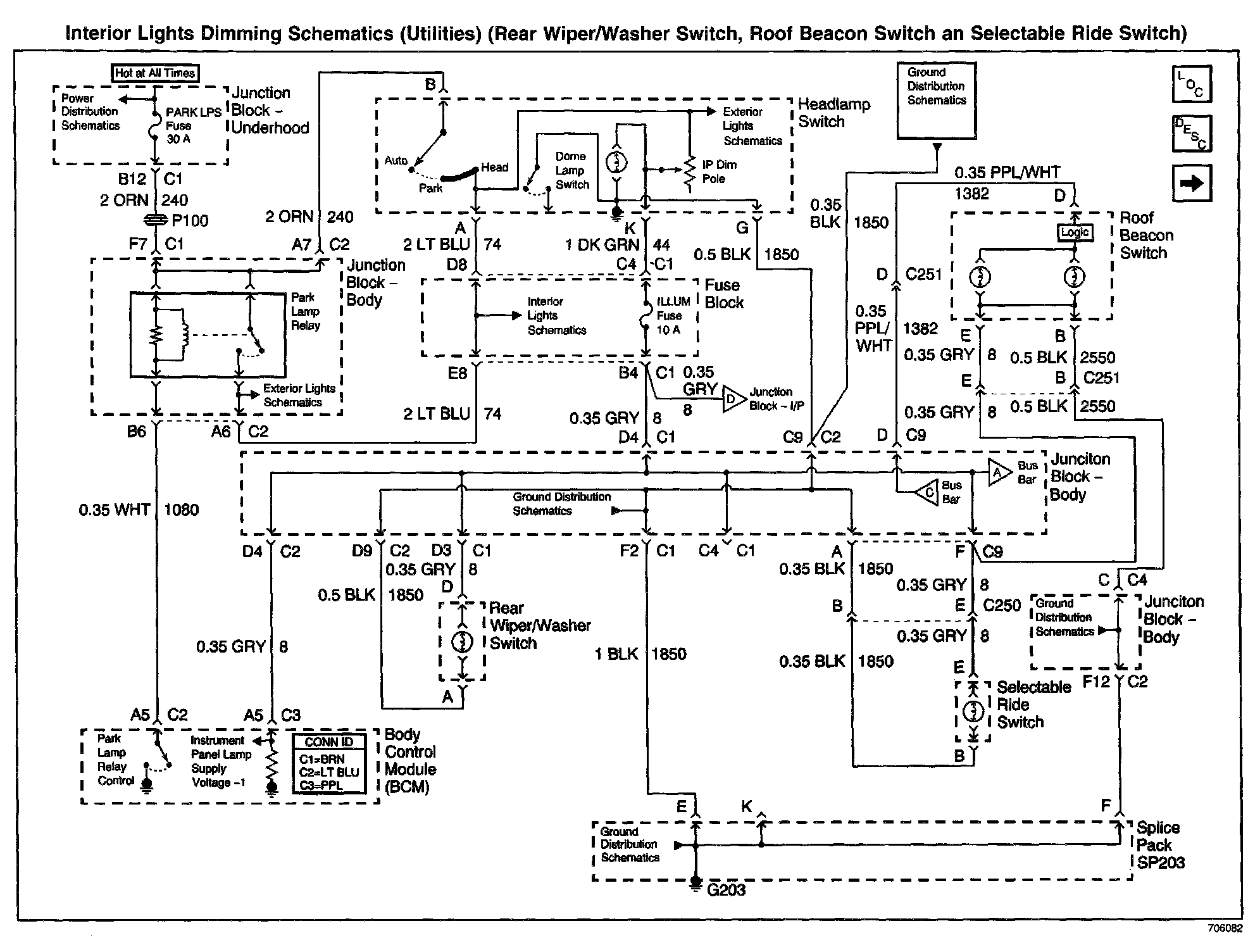

Interior Lights Dimming Schematics: Utilities (Rear Wiper/Washer Switch, Roof Beacon Switch An Selectable Ride Switch):
