93. Clutch Pilot Bearing Installation

Clutch Pilot Bearing Installation

- Tools Required
- J 38836 Pilot Bushing Installer/Clutch

Important: The flywheel spacer (if applicable) must be removed prior to pilot bearing installation.

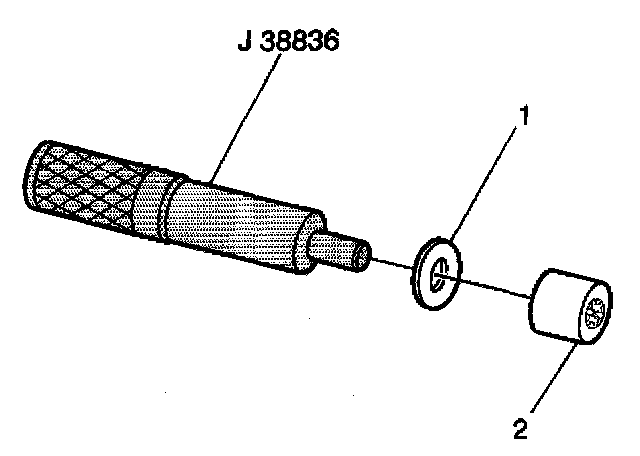

1. Install a 5/8 inch washer (1) onto the J 38836 or equivalent.
2. Install the new pilot bearing (2) onto the tool.

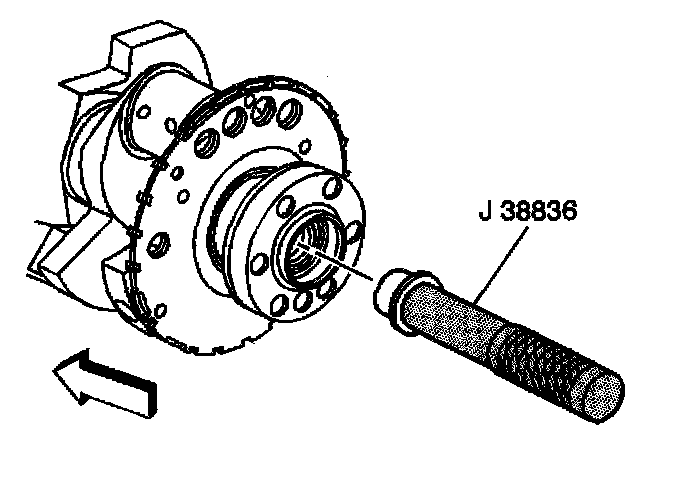

3. Install the new pilot bearing into the crankshaft using the J 38836.

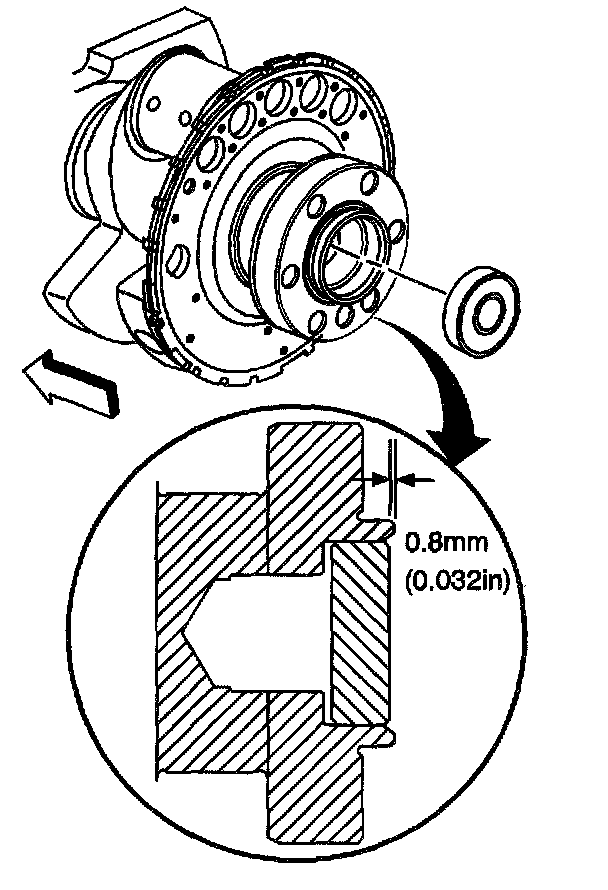

4. Inspect the clutch pilot bearing for proper installation,
