Wiper Arm Replacement - Rear

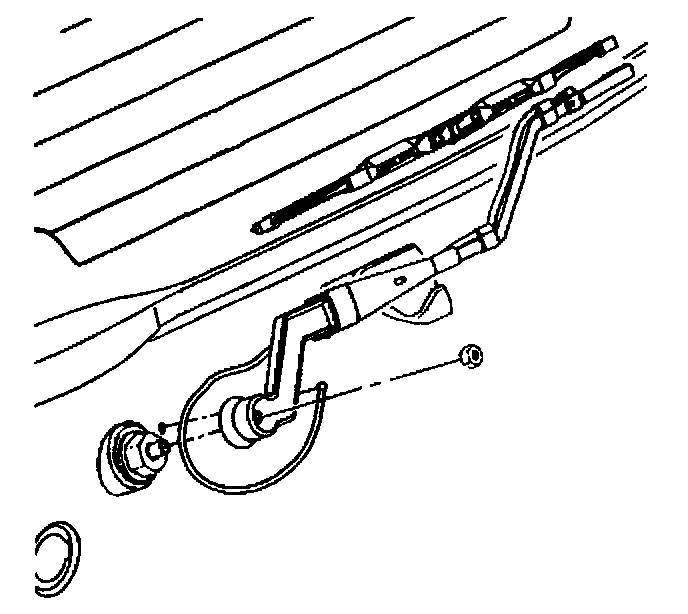

REMOVAL PROCEDURE




1. Disconnect the washer hose.
2. Remove the wiper arm cover.
3. Remove the nut.
4. Remove the wiper arm.

INSTALLATION PROCEDURE




1. Position the wiper arm into the park ramp with the tab on the ramp surface.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the wiper arm onto the motor with the nut.

Tighten
Tighten the nut to 23 N.m (17 lb ft).

3. Install the wiper arm cover.
4. Connect the washer hose.
