Rear Seat Cushion Frame Replacement (60/40 Split)

Rear Seat Cushion Frame Replacement (60/40 Split)

Removal Procedure




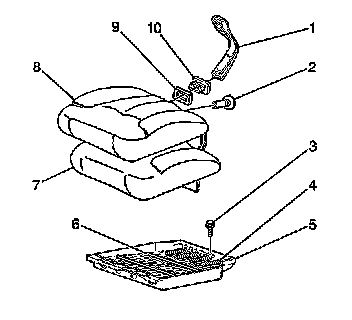

1. Remove the seat cushion trim cover (1) and the pad (2).
2. Remove the bolts that retain the seat frame to the mounting bracket.
3. Remove the seat cushion frame (4).

Installation Procedure




1. Install the seat cushion frame (4).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts that retain the seat frame to the mounting bracket.

Tighten the bolts to 35 N.m (26 lb ft).

3. Install the seat cushion trim cover (1) and the pad (2).
