Glove Compartment: Service and Repair

Instrument Panel Compartment Replacement

Removal Procedure




1. Close the instrument panel (I/P) compartment door.

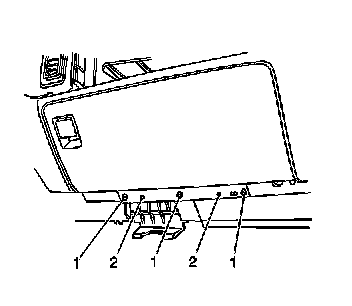

2. Drill out the 2 rivets (2).
3. Remove the I/P storage compartment door retaining screws (1) from the instrument panel.
4. Remove the I/P compartment door.

Installation Procedure




1. Install the I/P compartment door.

Notice: Refer to Fastener Notice.

2. Install the I/P compartment retaining screws (1) to the instrument panel.

Tighten the screws to 1.9 N.m (17 lb in).
