Water Deflector Replacement - Rear Door

REMOVAL PROCEDURE




1. Remove the trim panel.
2. Using a flat-bladed tool, break the bond between the sealer and the door.
3. Pull the waterproof sealing tape from the deflector.

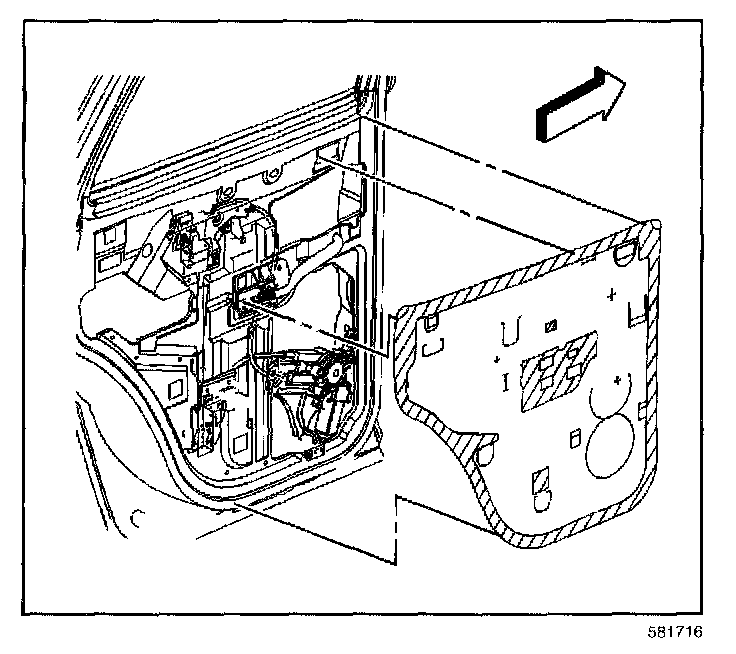

4. Remove the water deflector.

INSTALLATION PROCEDURE




1. Position the electrical connectors through the water deflector.
2. Using waterproof tape or 3M(R) 777 (or equivalent), install the water deflector to the door.
3. Install the trim panel to the door.
