Air Outlet Replacement - Rear Floor

REMOVAL PROCEDURE




1. Remove the floor console.

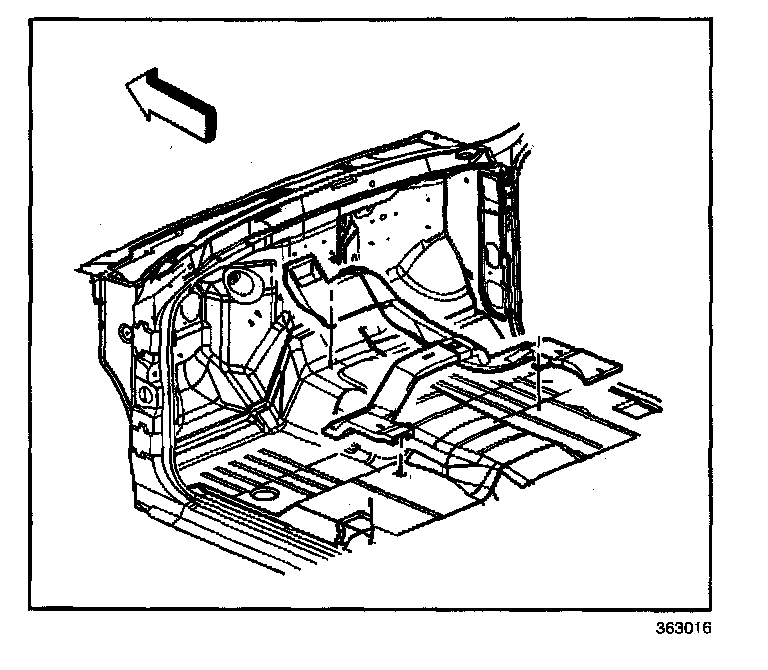

2. Remove the seats.
3. Remove the HVAC module. Refer to Heater Core Replacement.
4. Roll the carpeting back to expose the rear floor air ducts.

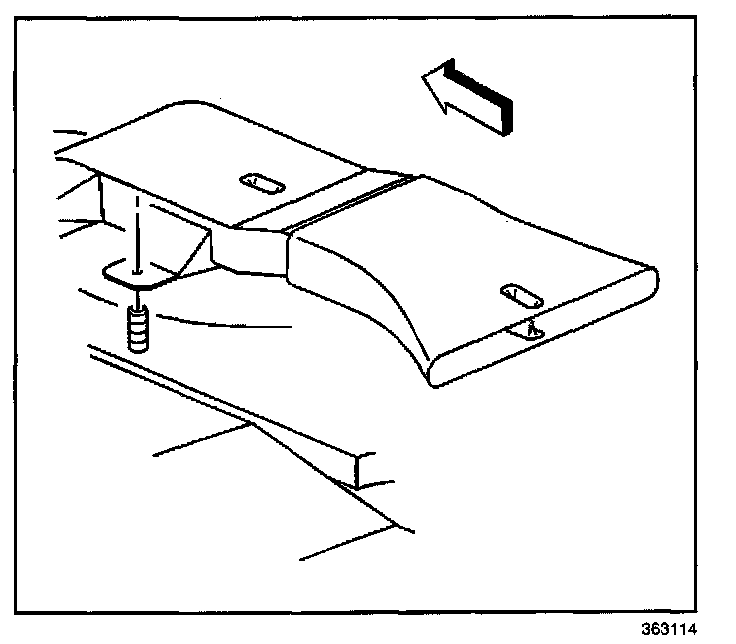

5. Remove the rear floor ducts from the floor studs.




6. Remove the rear floor duct.

INSTALLATION PROCEDURE




1. Install the rear floor air duct.




2. Install the rear floor ducts from the floor studs.
3. Position the carpeting back into place.
4. Install the HVAC module. Refer to Heater Core Replacement
5. Install the seats.
6. Install the floor console.
