Temperature Control Cable Replacement

TEMPERATURE CONTROL CABLE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) bezel. Refer to Bezel Replacement - IP Cluster in Instrument Panel, Gauges and Console.
2. Remove the radio.
3. Remove the heater control assembly.

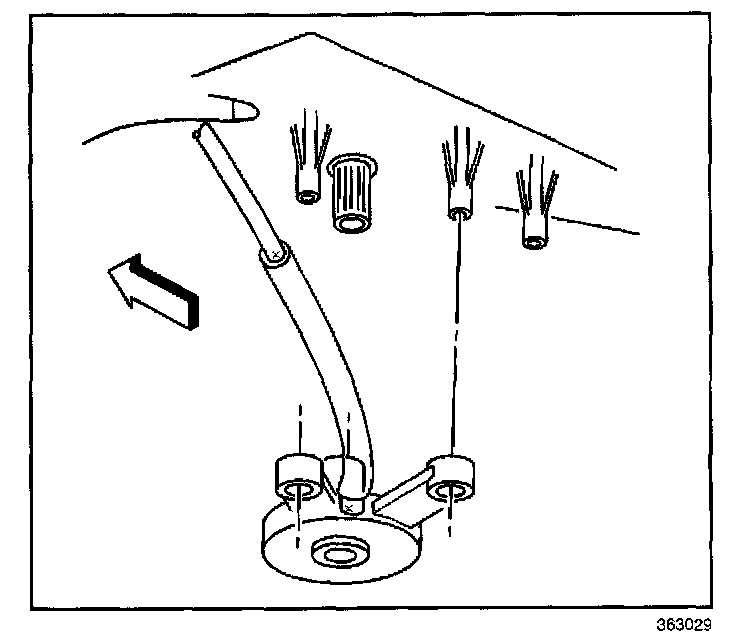

4. Disconnect the temperature control cable from the heater/ventilation module.
5. Remove the temperature control cable from the IP carrier.

INSTALLATION PROCEDURE




1. Install the temperature control cable to the IP carrier.
2. Connect the temperature control cable to the heater/ventilation module.
3. Install the heater control assembly.
4. Install the radio.
5. Install the IP bezel. Refer to Bezel Replacement - IP Cluster in Instrument Panel, Gauges and Console.
