Recirculation Actuator Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) upper trim panel. Refer to IP Carrier Replacement in Instrument Panel, Gauges and Console.
2. Remove the IP lower trim panel and the glove box assembly.
3. Remove the passenger side air bag. Refer to Inflatable Restraint Instrument Panel Module Replacement in Restraint Systems.

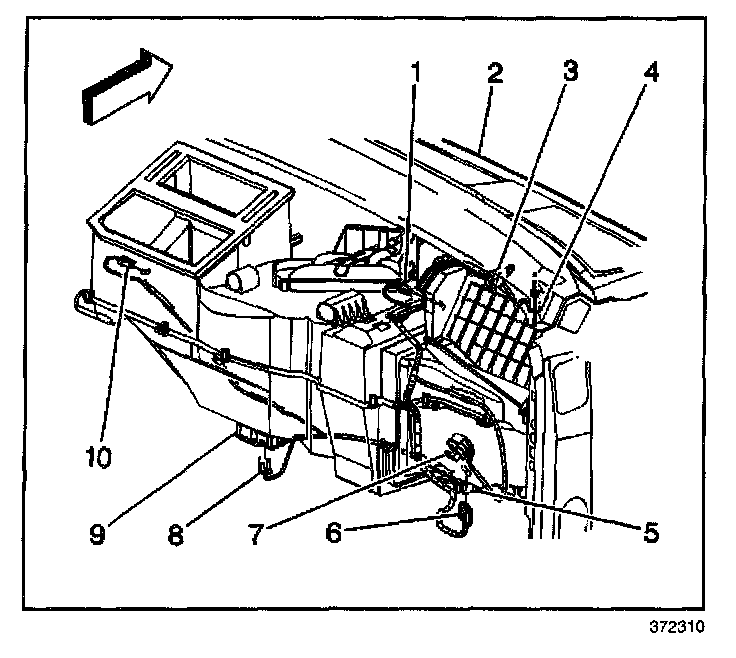

4. Disconnect the electrical connection from the recirculation actuator (1).




5. Remove the recirculation actuator retaining screws
6. Remove the recirculation actuator.

INSTALLATION PROCEDURE

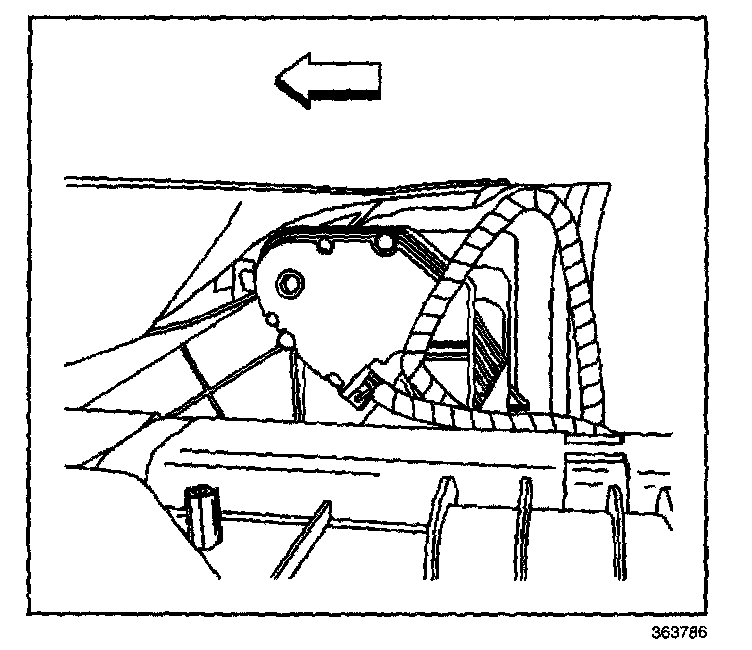

1. Install the recirculation actuator.

NOTE: Refer to Fastener Notice in Service Precautions.

2. install the recirculation actuator retaining screws.

Tighten
Tighten the screws to 1.6 N.m (14 lb in).




3. Connect the electrical connector to the recirculation actuator (1).
4. Install the passenger side air bag. Refer to Inflatable Restraint Instrument Panel Module Replacement in Restraint Systems.
5. Install the IP lower trim panel and the glove box assembly.
6. Install the IP upper trim panel. Refer to IP Carrier Replacement in Instrument Panel, Gauges and Console.
7. Inspect the system for proper operation.
8. Calibrate the HVAC module actuators. Refer to Re-Calibrating Actuators in HVAC Systems - Automatic.
