Air Temperature Actuator Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel hush panel.

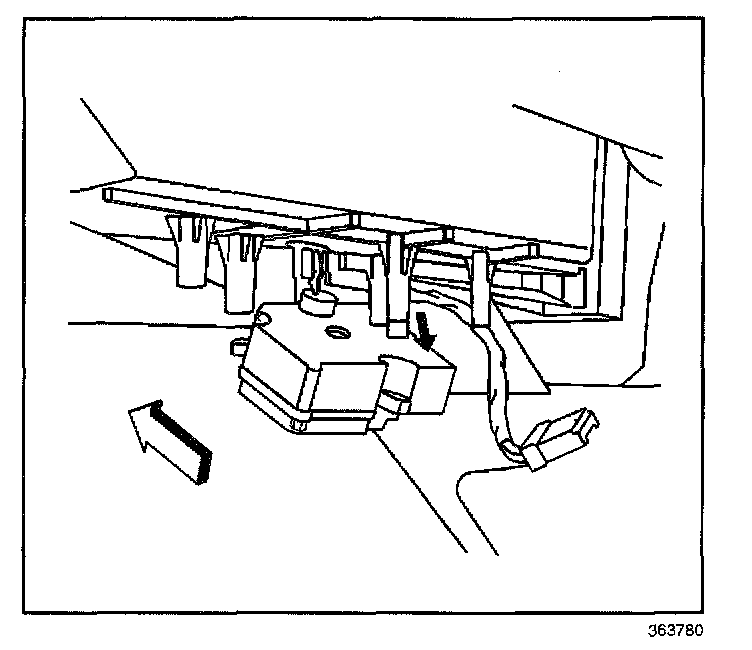

2. Disconnect the electrical connector (8) from the air temperature actuator (9).




3. Remove the air temperature actuator retaining screws.




4. Remove the air temperature actuator.

INSTALLATION PROCEDURE




1. Install the air temperature actuator.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the air temperature actuator retaining screws.

Tighten
Tighten the screws to 1.6 N.m (14 lb in).




3. Connect the electrical connector (8) to the air temperature actuator (9).
4. Install the instrument panel hush panel.
5. Calibrate the HVAC module actuators. Refer to Re-Calibrating Actuators in HVAC Systems - Automatic.
