85. Case Extension Bushing Replacement

^ Tools Required
- J 8092 Driver Handle
- J 23062-14 Bushing Remover
- J 34196B Bushing Service Set

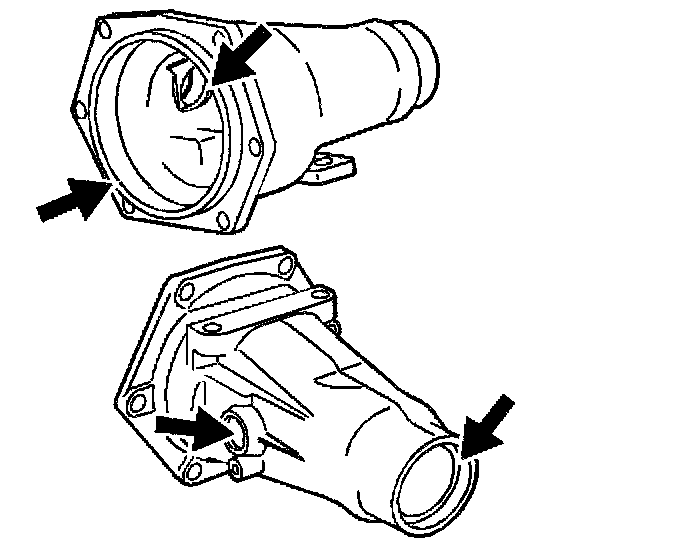

1. Inspect the case extension for the following conditions:
^ Porosity
^ Cracks
^ Nicks
^ Burrs
^ Worn bushings

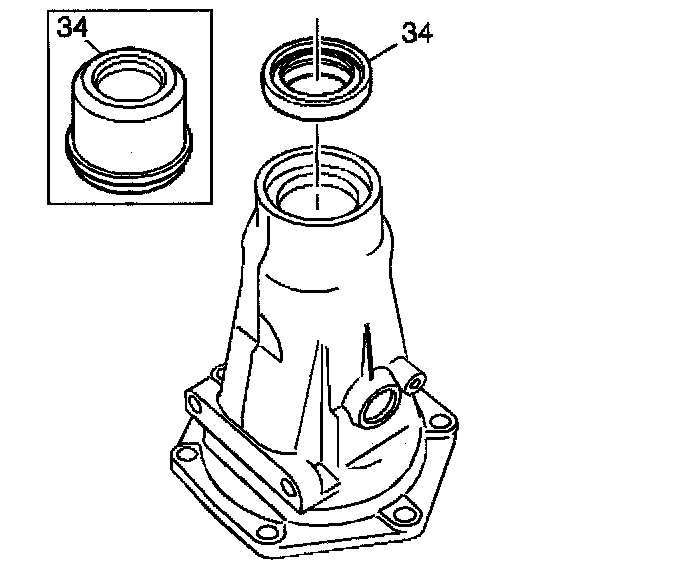

2. Remove the case extension oil sea] assembly (34) (model dependent).

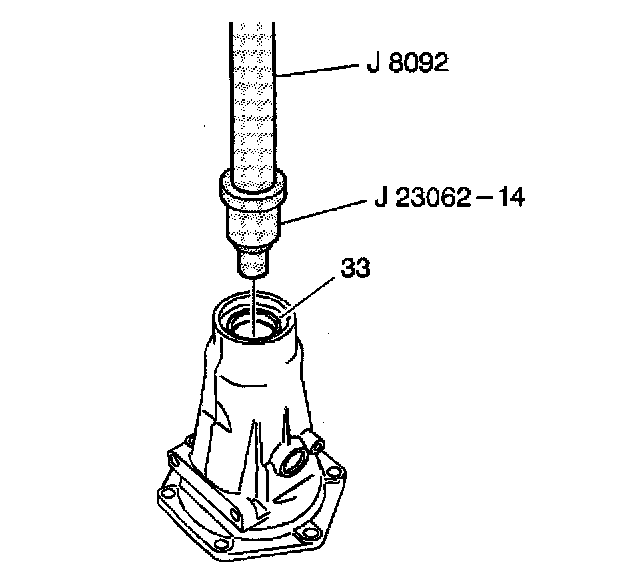

3. Using the J 23062-14 and the J 8092, remove the case extension bushing (33).

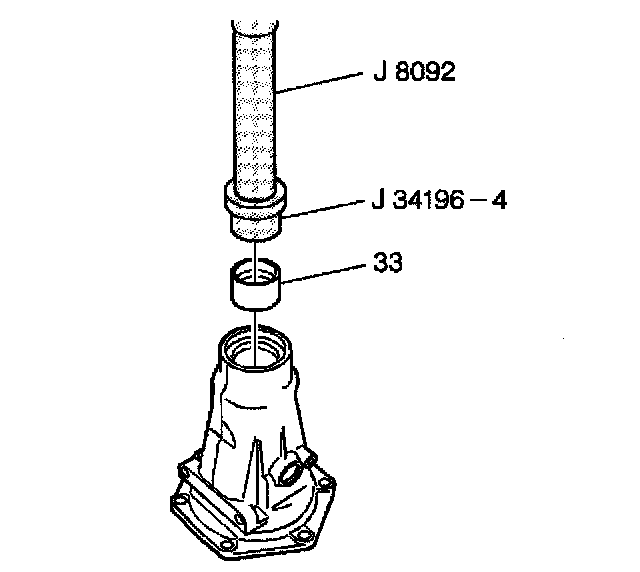

4. Using the J 34196-4 and the J 8092, install a case extension bushing (33).
