Tie Rod End: Service and Repair

TIE ROD END REPLACEMENT - OUTER

- Tools Required
- J 24319-01 Universal Steering Linkage Puller

Removal Procedure





1. Raise the vehicle. Support the vehicle with suitable safety stands. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

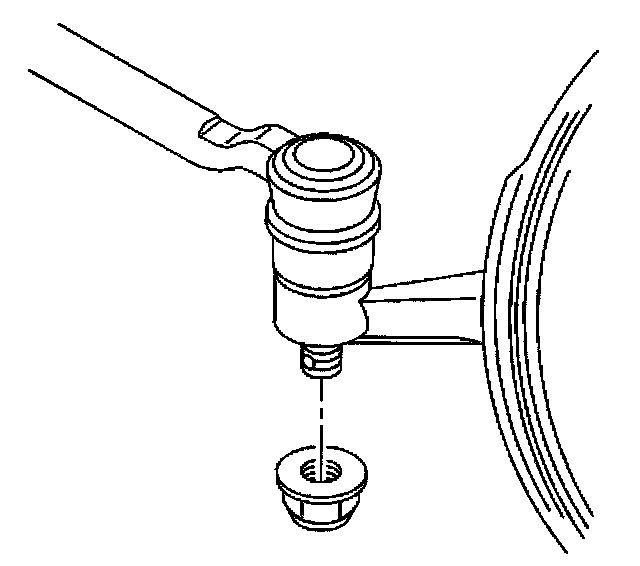

3. Remove the torque prevailing nut from outer tie rod stud.





4. Loosen the jam nut (2) on the inner tie rod assembly (1).

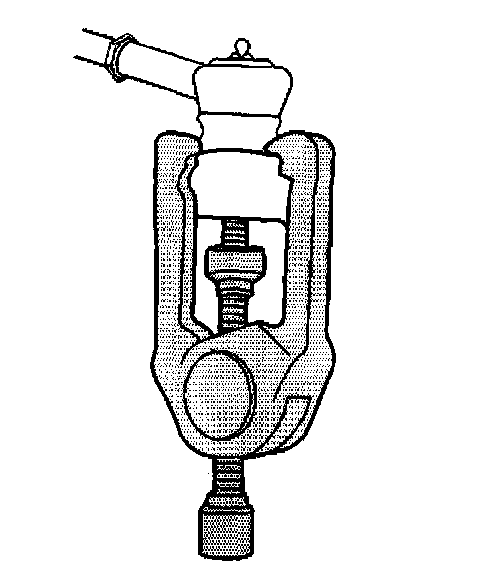

5. Remove the outer tie rod assembly from the steering knuckle using J 24319-01.

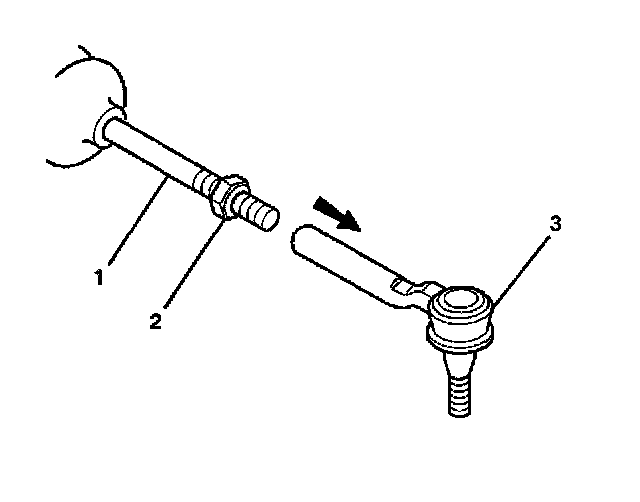

6. Remove the outer tie rod assembly (3) from the inner tie rod assembly (1).


Installation Procedure

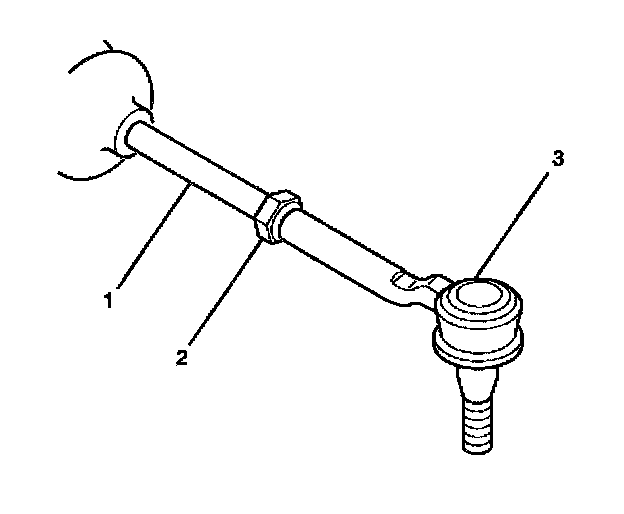

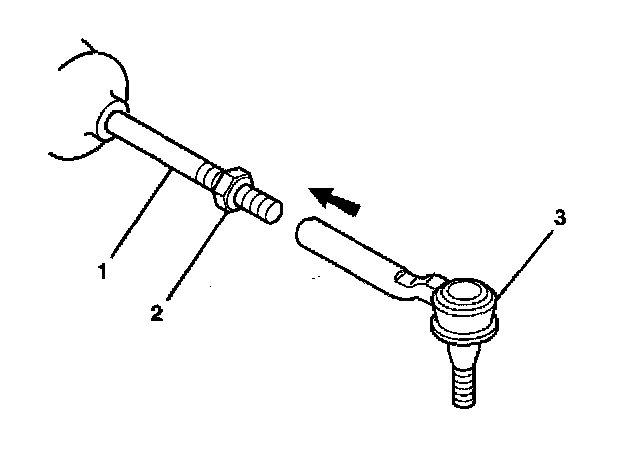

1. Connect the outer tie rod assembly (3) to the inner tie rod (1). Do not tighten the jam nut (2).





2. Install the tie rod seal (2) to the outer tie rod assembly (1).

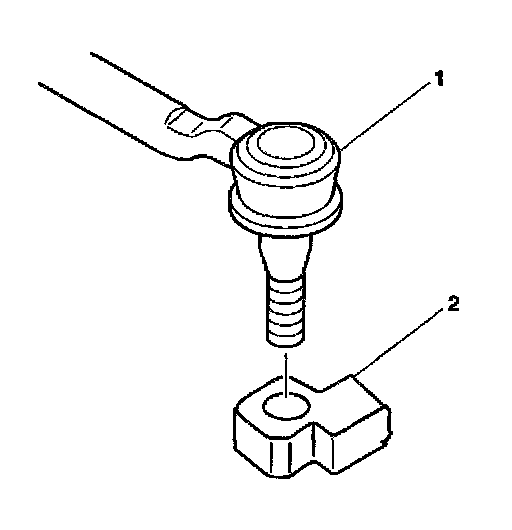

3. Connect the outer tie rod assembly (1) to the steering knuckle (2).

Notice: Refer to Fastener Notice in Service Precautions.

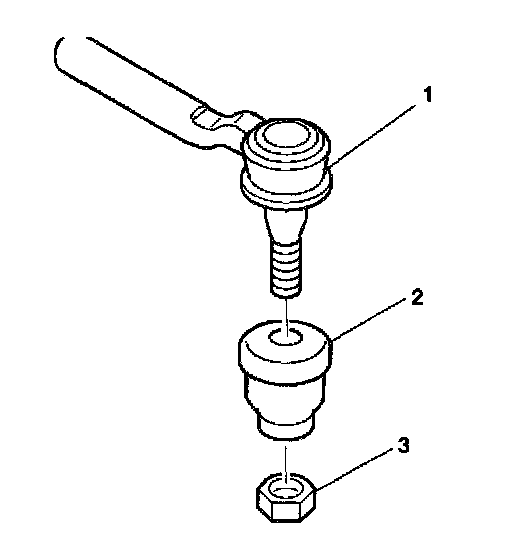

4. Install the torque prevailing nut (3) to the outer tie rod stud (1).
- Tighten the torque prevailing nut (3) to 50 Nm (37 ft. lbs.).

Important: Be sure the rack and pinion boot is not twisted after the toe adjustment.

5. Check the wheel alignment. Refer to Measuring Wheel Alignment.
6. Tighten the jam nut.
- Tighten the jam nut against the outer tie rod end to 68 Nm (50 ft. lbs.).
