Battery Relay to Starter

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the auxiliary negative battery cable.




2. Reposition the boot.
3. Remove the auxiliary positive battery cable nut.
4. Remove the auxiliary positive battery cable from the auxiliary relay.
5. Remove the auxiliary positive battery cable clip from the battery tray.
6. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.

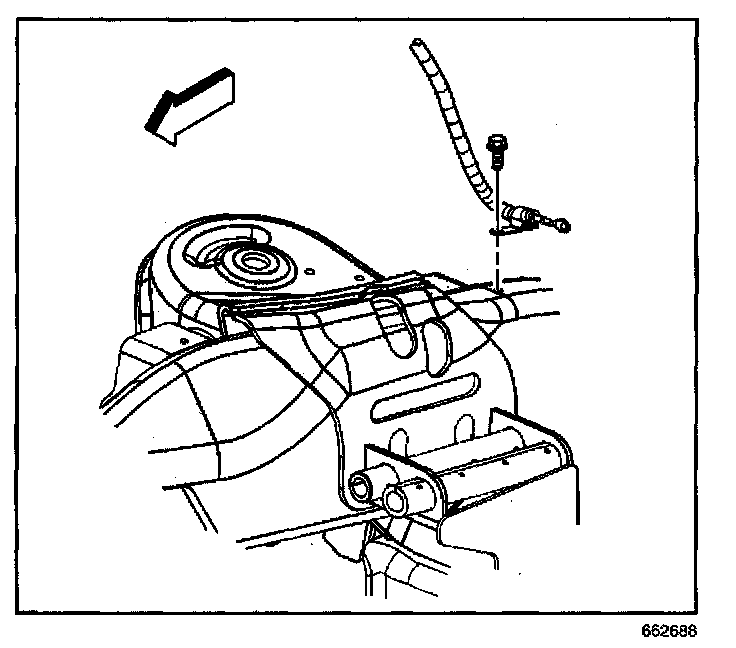

7. Remove the auxiliary cable clip bolt from the frame.

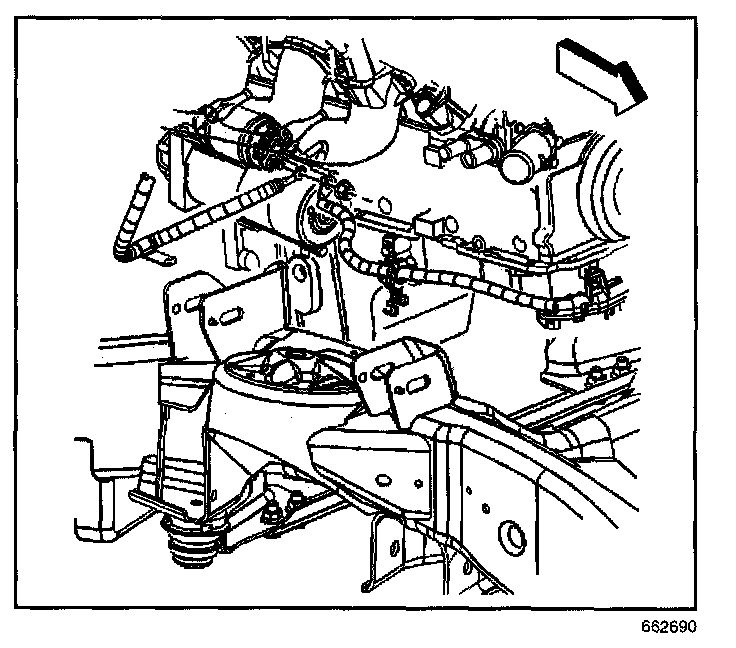

8. Remove the starter lead nut.
9. Remove the auxiliary positive battery cable from the starter stud.
10. Remove the auxiliary positive battery cable.

INSTALLATION PROCEDURE




1. Install the auxiliary positive battery cable.
2. Install the auxiliary positive battery cable to the starter stud.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the starter lead nut.

Tighten
Tighten the starter lead nut to 9 N.m (80 lb in).




4. Install the auxiliary cable clip bolt to the frame.

Tighten
Tighten the auxiliary battery cable clip bolt to 10 N.m (89 lb in).

5. Lower the vehicle.




6. Install the auxiliary positive battery cable clip to the battery tray.
7. Install the auxiliary positive battery cable to the auxiliary relay.
8. Install the auxiliary positive battery cable nut.

Tighten
Tighten the auxiliary positive battery cable nut to 8 N.m (71 lb in).

9. Position the boot.




10. Connect the auxiliary negative battery cable.
