Battery Cable Replacement (Positive)

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.




2. Unsnap the positive battery cable cap.
3. Disconnect the positive battery cable.

IMPORTANT: The bolt is integral to the battery cable and is not removable.

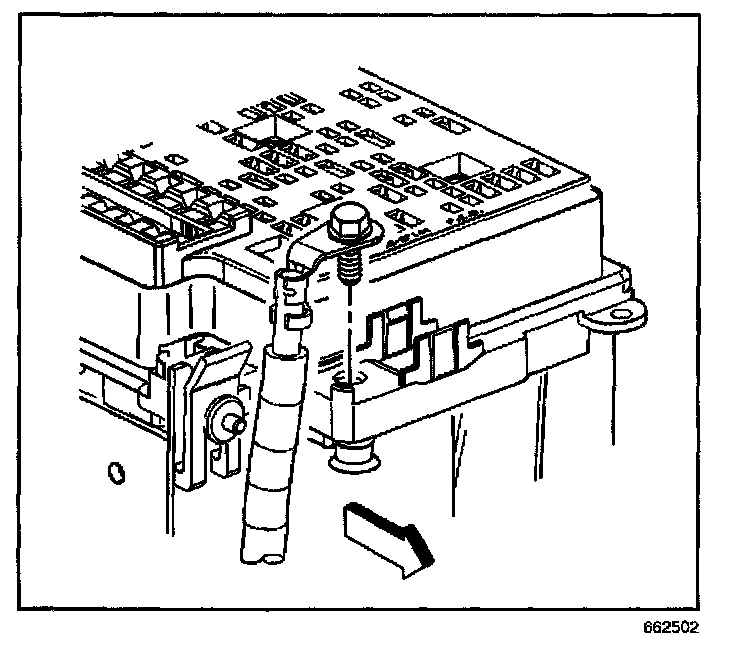

4. Loosen the positive cable bolt at the Underhood Bussed Electrical Center (UBEC).




5. If necessary, remove the engine sight shield.
6. Unsnap the junction block cover.

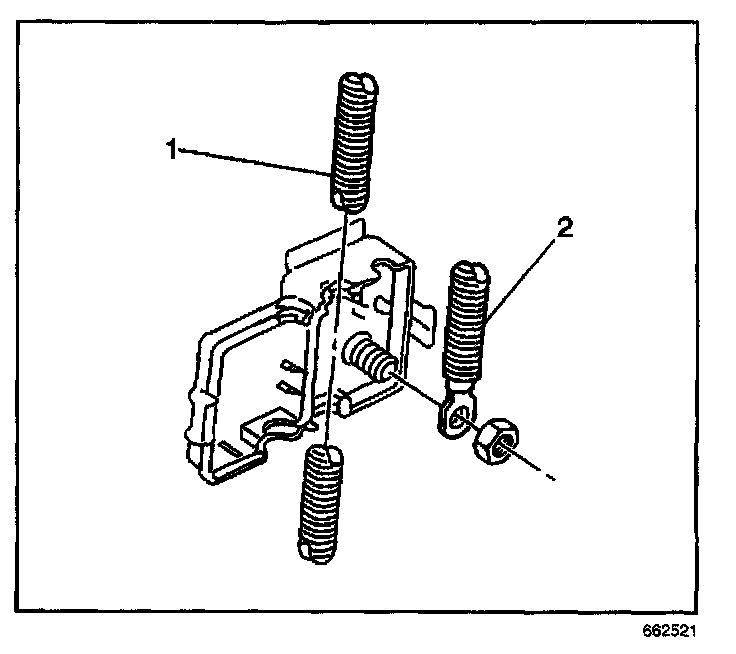

7. Remove the positive battery cable (1) from the junction block.




8. Remove the negative cable clip from the positive cable clip.
9. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.




10. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.

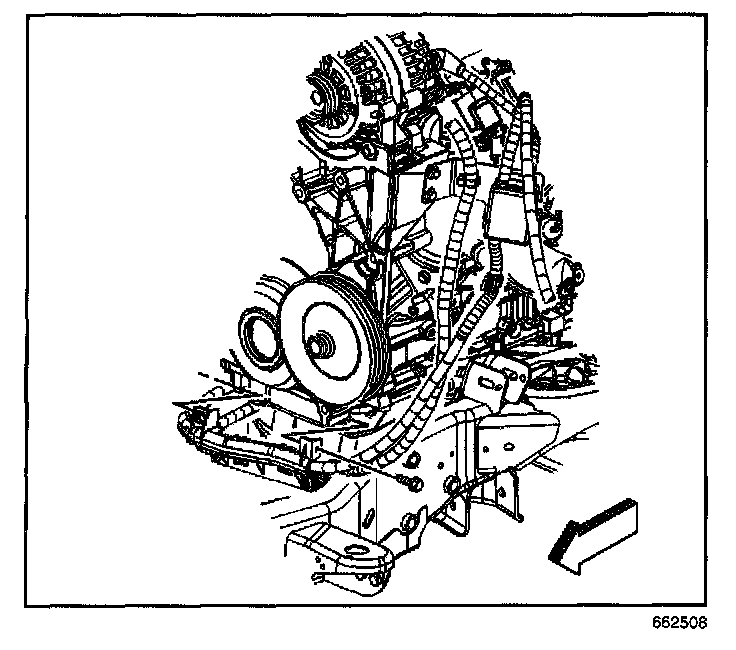

11. Remove the positive battery cable channel bolt.
12. Slide the channel pin out of the oil pan tab.
13. Remove the positive battery cable from the channel.

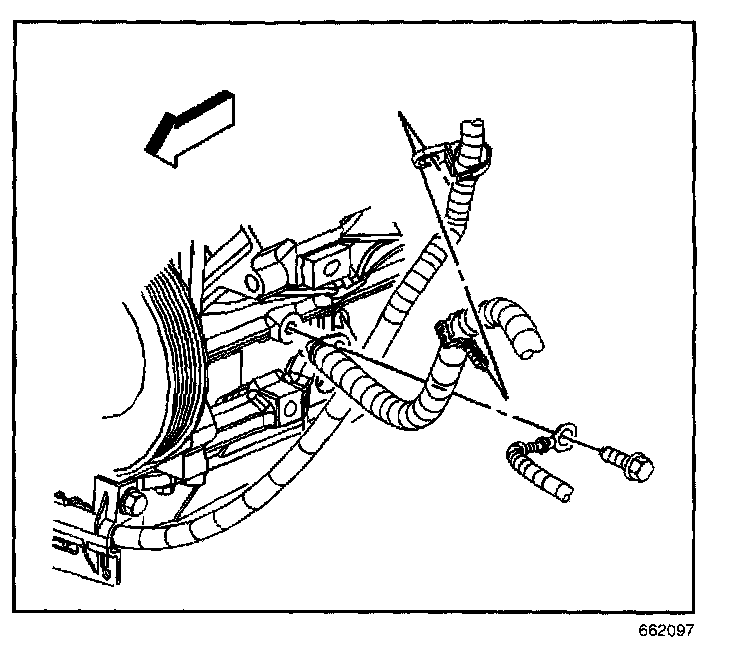

14. Remove the battery cable bracket bolt and bracket from the power steering pump.

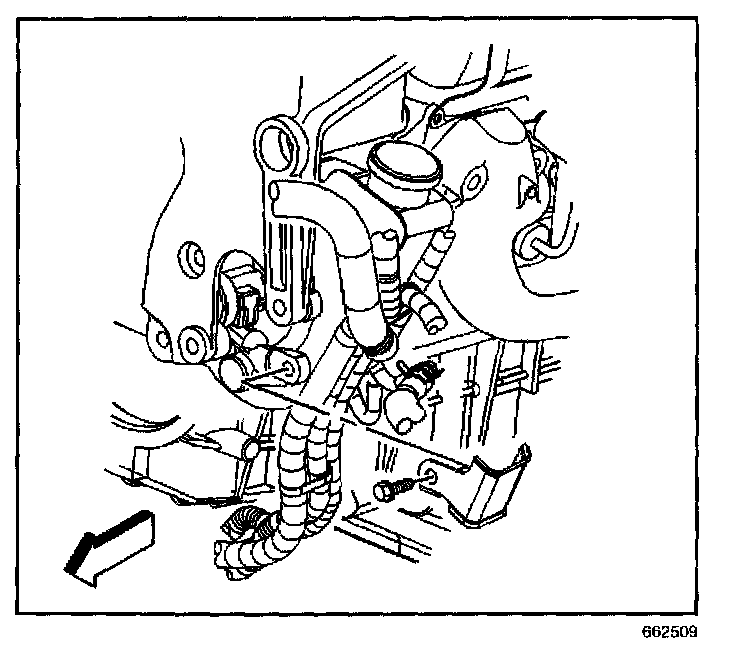

15. Remove the starter lead nut.
16. Remove the positive cable from the starter.

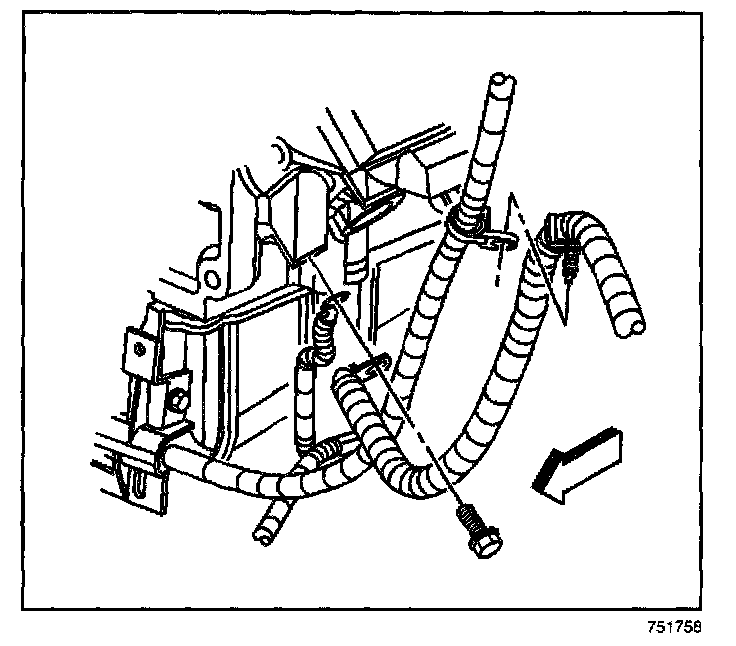

17. Remove the positive cable clip from the clip on the oil pan.
18. Remove the positive cable from the clip on the oil pan.
19. Remove the positive battery cable.

INSTALLATION PROCEDURE




1. Install the positive battery cable.
2. Install the positive cable to the clip on the oil pan.
3. Install the positive cable clip to the clip on the oil pan.
4. Install the positive cable to the starter.
5. Install the starter lead nut.

Tighten
Tighten the starter lead nut to 9 N.m (80 lb in).




6. Install the battery cable bracket and bolt.

Tighten
Tighten the battery cable bracket bolt to 25 N.m (18 lb ft).




7. Install the positive battery cable to the channel.
8. Slide the channel pin into the oil pan tab.
9. Install the positive battery cable channel bolt.

Tighten
Tighten the battery cable channel bolt to 12 N.m (106 lb in).

10. Lower the vehicle.




11. Install the negative cable clip to the positive cable clip.




12. Install the positive cable (1) into the junction block.
13. Snap the junction block cover closed.
14. If necessary, install the engine sight shield.




15. Tighten the positive cable bolt at the UBEC.

Tighten
Tighten the positive cable bolt at the UBEC to 9 N.m (80 lb in).




16. Connect the positive battery cable.

Tighten
Tighten the positive battery cable bolt to 17 N.m (13 lb ft).

17. Snap the positive battery cable cap closed.




18. Connect the negative battery cable.
