Single Battery

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Turn off all the lamps and accessories.
2. Turn the ignition OFF.

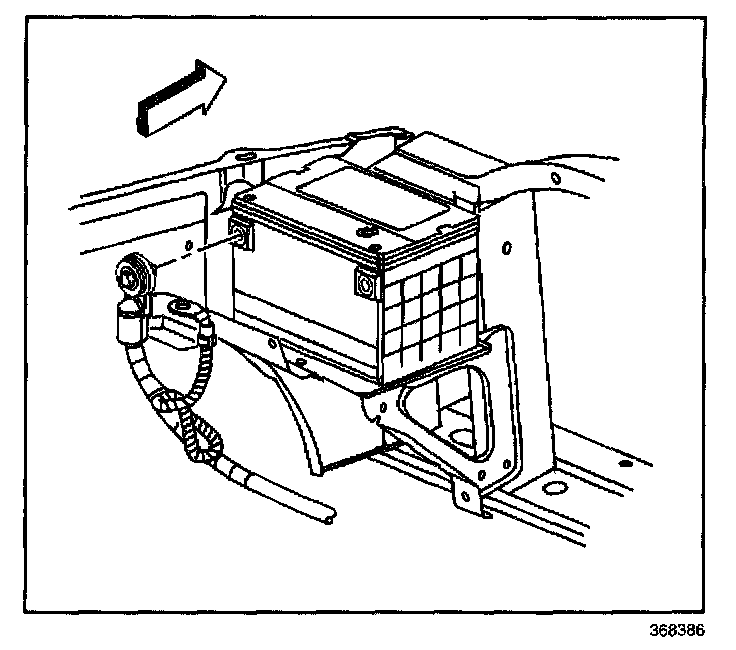

3. Disconnect the battery ground (negative) cable and bolt from the battery.

INSTALLATION PROCEDURE 1

NOTE: Refer to Battery Disconnect Caution in Service Precautions.

IMPORTANT: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.




1. Connect the battery ground (negative) cable and bolt to the battery.

Tighten
Tighten the battery terminal bolt to 16 N.m (12 lb ft).

2. Set the clock to the current time and program the customer's preferred radio stations. Refer to Radio/Audio System Description and Operation in Radio, Stereo and Compact Disc.

INSTALLATION PROCEDURE 2

NOTE: Refer to Battery Disconnect Caution in Service Precautions.

IMPORTANT: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.




1. Connect the battery ground (negative) cable and bolt to the battery.

Tighten
Tighten the battery terminal bolt to 16 N.m (12 lb ft).

2. Set the clock to the current time and program the customer's preferred radio stations.
