Parking Brake Shoe: Adjustments

Park Brake Shoe Adjustment

^ Tools Required
- J 21177-A Drum-to-Brake Shoe Clearance Gauge

Important: The park brake shoes must be adjusted before the park brake pedal is adjusted.

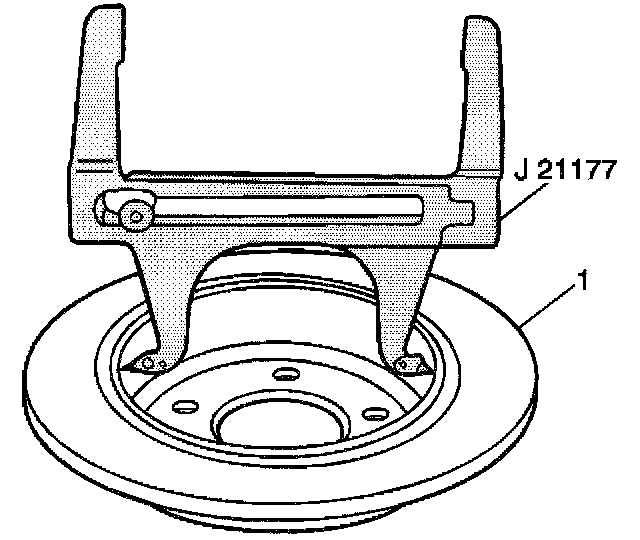

1. Set the J21177-A so that it contacts the inside diameter of the rotor.

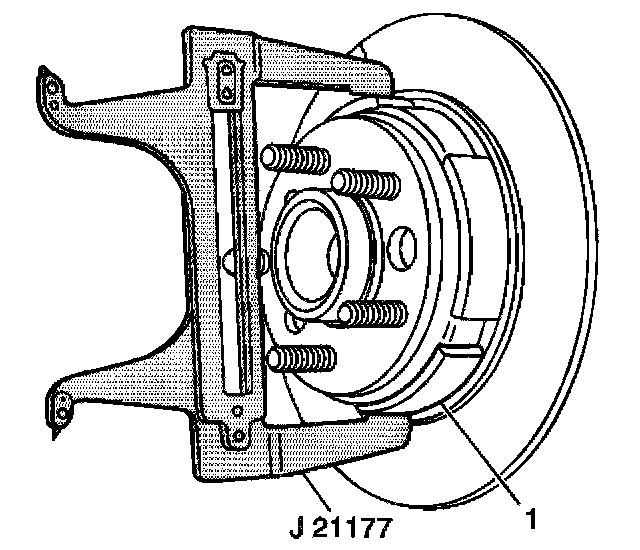

2. Position the J 211 77-A over the shoe and the lining at the widest point.
3. Turn the adjuster nut until the lining just contacts the J21177-A.
4. Repeat steps 1-3 for the opposite side.
5. The clearance between the park brake shoe and the rotor is 0.6604 mm (0.026 inch).
