Park Brake Cable Replacement Intermediate

Removal Procedure





1. Release the park brake.
2. Raise and support the vehicle. Refer to Vehicle Lifting.

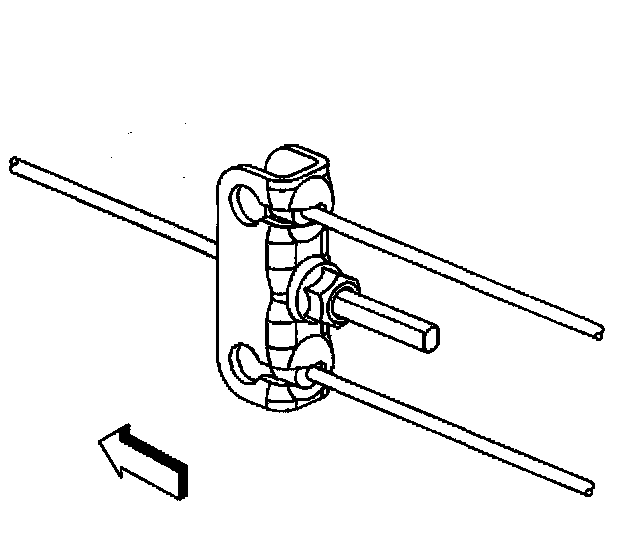

3. Remove the nut from the threaded end of the intermediate cable.
4. Disconnect the equalizer from the rear park brake cables.

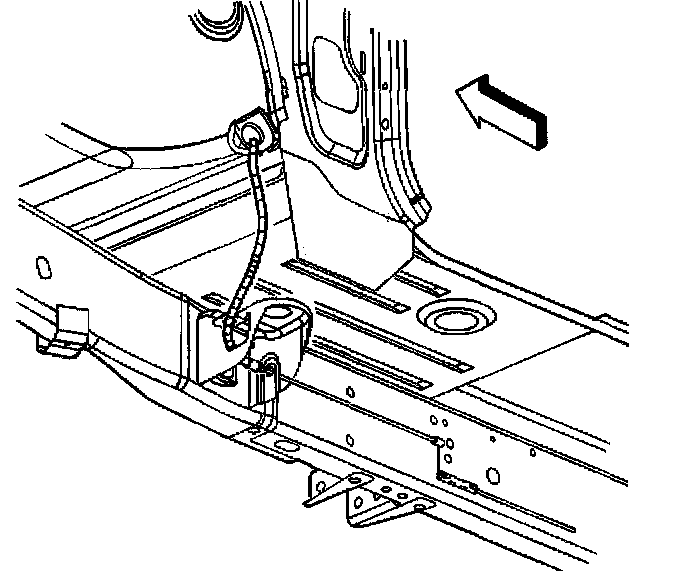

5. Disconnect the intermediate cable from the front cable.
6. Remove the intermediate cable.

Installation Procedure





1. Install the intermediate cable.

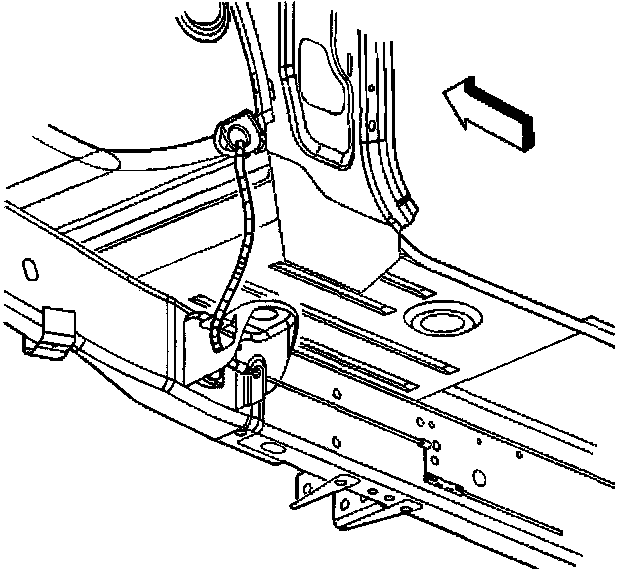

2. Connect the intermediate cable to the front cable.
3. Connect the equalizer to the rear park brake cables.





Notice: Refer to Fastener Notice in Service Precautions.

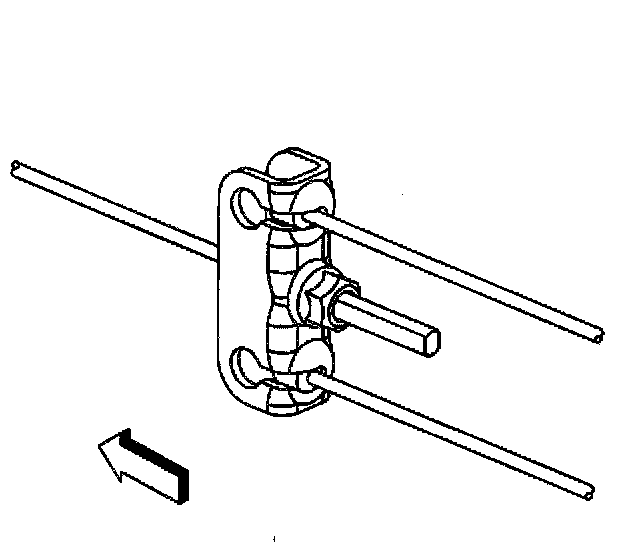

4. Install the nut to the threaded end of the intermediate cable.
^ Tighten the nut to 3.5 Nm (31 inch lbs.).
5. Remove the safety stands.
6. Lower the vehicle.
7. Adjust the park brake system.
