Disc Brake Splash Shield Replacement

Disc Brake Splash Shield Replacement - Front

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.
3. Remove the hub and bearing assembly.

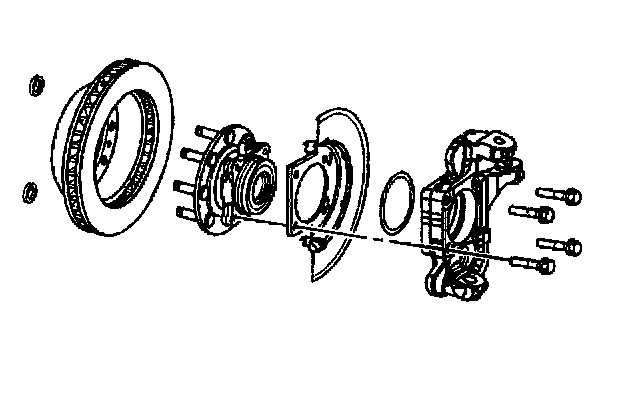

4. Remove the splash shield (15 series).

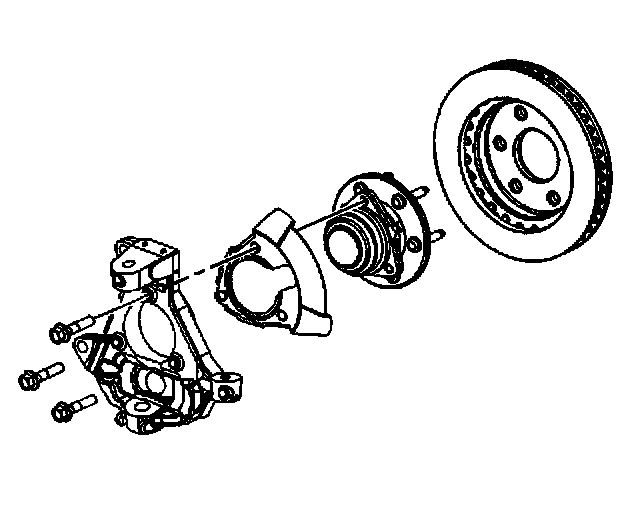

5. Remove the splash shield (25 series).

Installation Procedure





1. Install the splash shield (15 series).





2. Install the splash shield (25 series).
3. Install the hub and bearing assembly.
4. Install the tire and wheel assembly.
5. Remove the safety stands.
6. Lower the vehicle.
