Transmission Housing Oil Seal Replacement (Rear Seal 2WD)

Transmission Housing Oil Seal Replacement (Rear Seal 2WD)

^ Tools Required
- J 23129 Universal Seal Remover.
- J 6125- 1B Slide hammer.
- J 36503 Seal Installer.

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the rear propeller shaft.

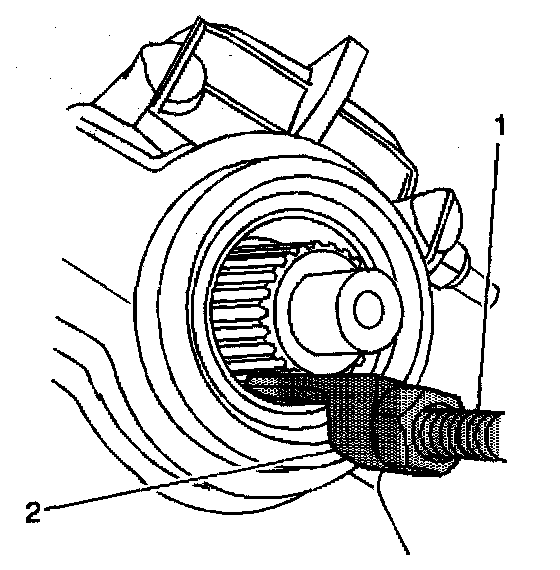

3. Remove the rear oil seal from the rear case using the J 6125-1B (1) and the J 23129 (2).
4. Remove the rear oil seal from the extension housing.

Installation Procedure

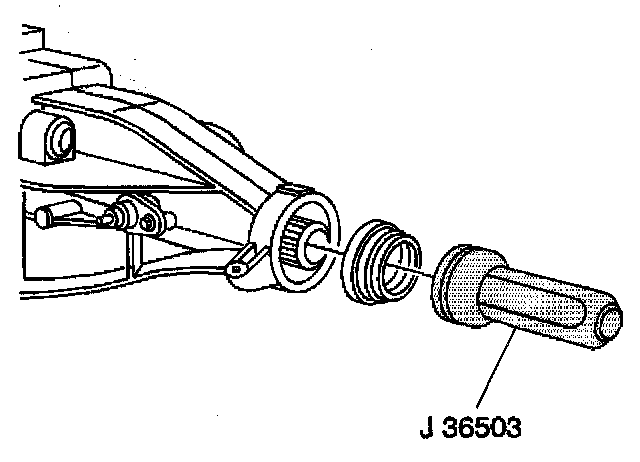

1. Using the J 36503 install the new rear oil seal.
2. Install the rear propeller shaft.
3. Check the transmission oil level.
4. Lower the vehicle.
