Front
Propeller Shaft Replacement - Front^ Tools Required
- J 43218 Clamp Plier
Removal Procedure
Important: Observe and accurately reference mark all driveline components relative to the propeller shaft and axles before disassembly. These components include the propeller shafts, the wheel drive shafts, the pinion flanges, the output shafts, etc. All components must be reassembled in the exact relationship to each other as they were when removed. In addition, published specifications and torque values, as well as any measurements obtained prior to disassembly must be followed.

1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the transfer case shield (if equipped).
3. Reference mark the relationship of the propeller shaft to the front axle pinion yoke.

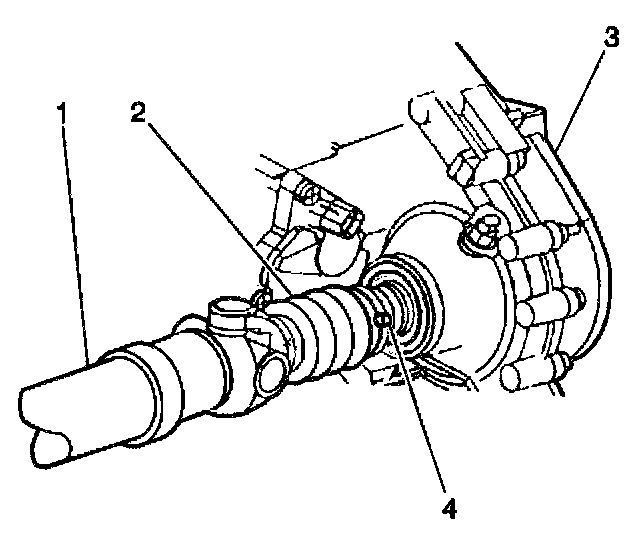

4. Remove the clamp (4) at the transfer case (3) by prying up the exposed end of the clamp (4) with a flat bladed tool.

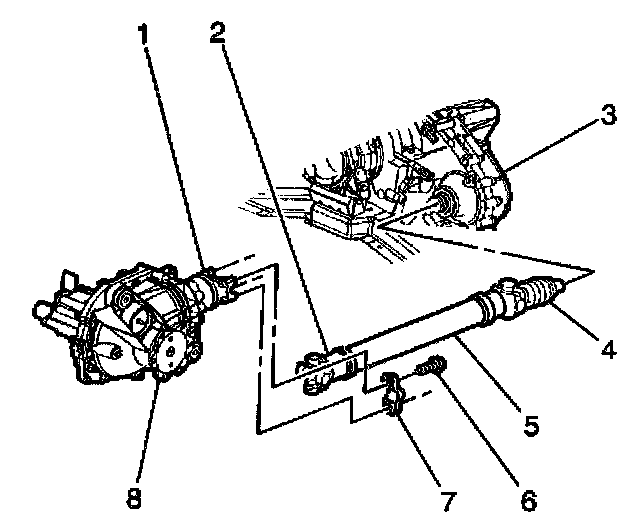

5. Remove the bolts (6) and the yoke retainers (7) from the front axle pinion yoke (1).
Notice: When removing the propeller shaft, do not attempt to remove the shaft by pounding on the yoke ears or using a tool between the yoke and the universal joint. If the propeller shaft is removed by using such means, the injection joints may fracture and lead to premature failure of the joint.
6. Disconnect the propeller shaft (2) from the front axle pinion yoke (1).
Wrap the bearing caps with tape in order to prevent the loss of bearing rollers.
Important: Avoid dropping the bearing cap assemblies of the yoke end.
7. Remove the propeller shaft (5) from the transfer case output shaft by sliding the propeller shaft forward.
Installation Procedure

1. Inspect the splines of the transfer case output shaft for a sufficient coating of grease. If the output shaft does not have a sufficient coating of grease, lubricate the shaft with grease (GM P/N 12345879 or equivalent).
2. Install the new clamp into the groove of the propeller shaft boot.

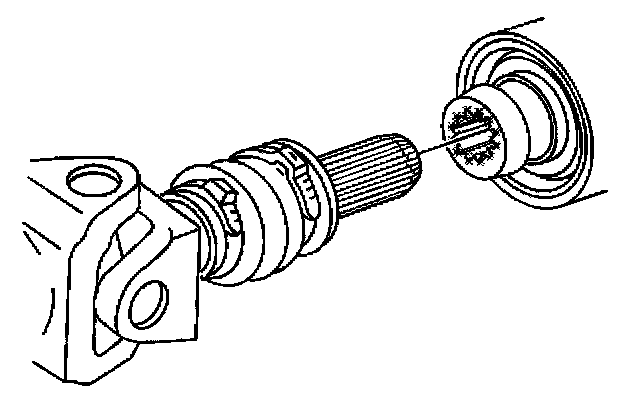

3. Install the propeller shaft splines into the transfer case output shaft.

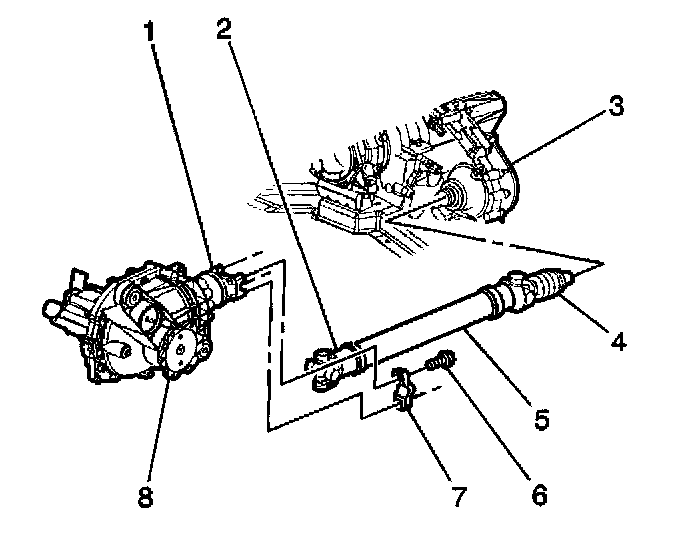

4. Install the propeller shaft (5) to the front axle pinion yoke (1).
Align the reference marks made during removal.
Notice: Refer to Fastener Notice in Service Precautions.
5. Install the yoke retainers (7) and the bolts (6).
^ Tighten the yoke retainer bolts to 25 Nm (19 ft. lbs.).
6. Install the boot onto the transfer case output shaft until the boot snaps into the groove on the output shaft.

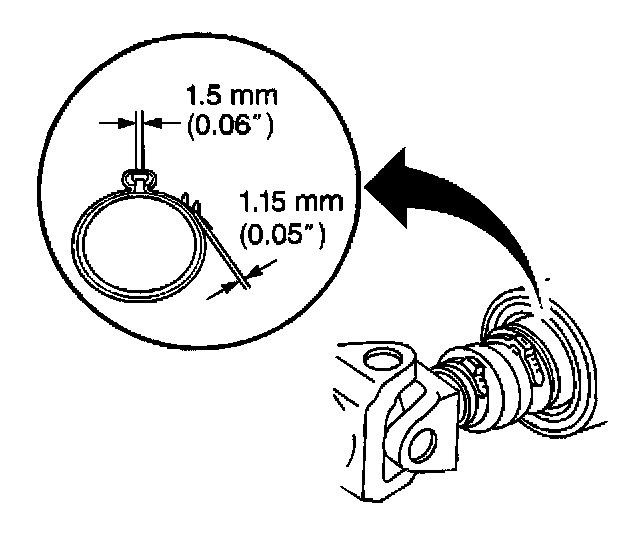

7. Using the J 43218, crimp the clamp until the dimensions shown are obtained.
8. Install the transfer case shield (if equipped).
9. Lower the vehicle.
