Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement
Removal Procedure

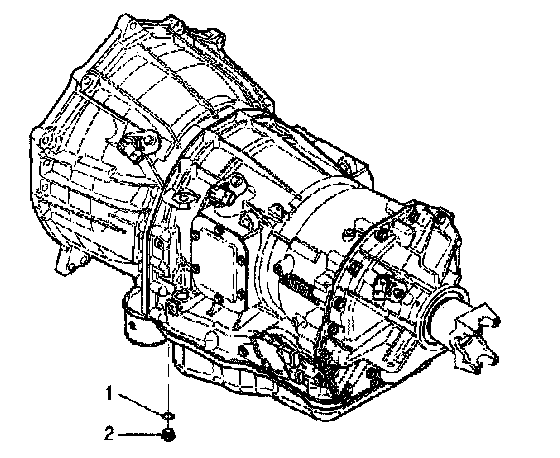

1. Remove the pressure tap plug (2) and O-ring (1) that is located on the bottom of the converter housing near the control main filter.
2. Remove the O-ring from the plug and discard it.

Installation Procedure

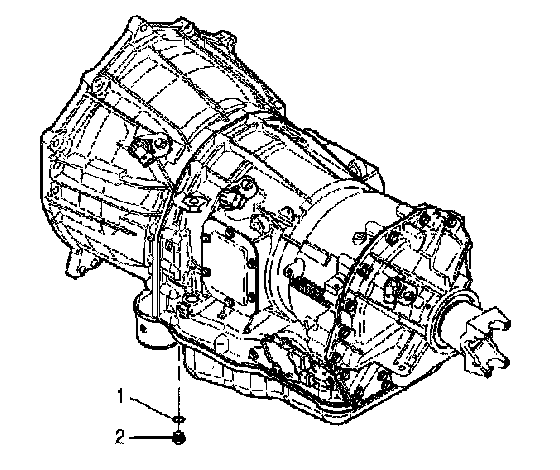

1. Install a new O-ring (1) on the pressure tap plug (2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the plug and O-ring into the converter housing.
^ Tighten the plug to 12 Nm (108 inch lbs.).
