Automatic Transmission Oil Cooler Fitting Replacement

Automatic Transmission Oil Cooler Fitting Replacement
Removal Procedure





1. Disconnect the hose from the hydraulic connector assembly being replaced.

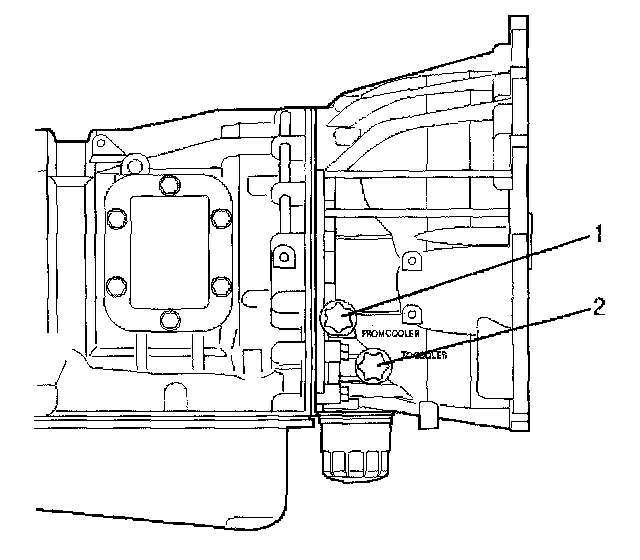

2. Remove the hydraulic connector assembly (1) and/or (2).

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

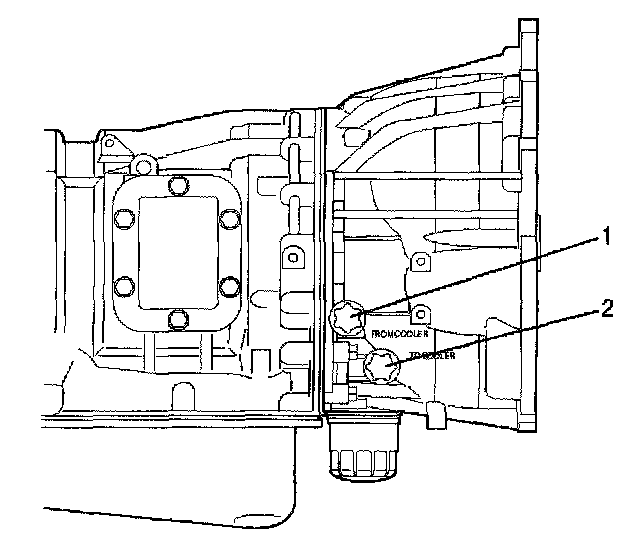

1. Install a new hydraulic connector assembly (1) and/or (2)
^ Tighten to 25 Nm (18 ft. lbs.).
2. Connect the hose to the hydraulic connector(s).
