Chassis EVAP Pipe Installation Procedure

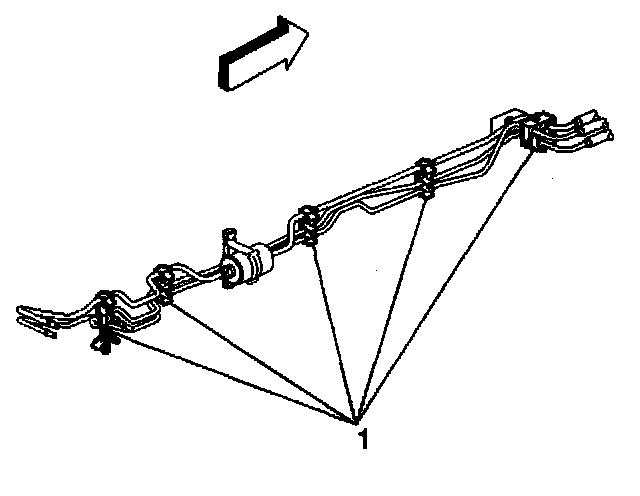

1. Install the EVAP pipe into the retaining clips (1).




2. Remove the cap from the rear EVAP pipe.

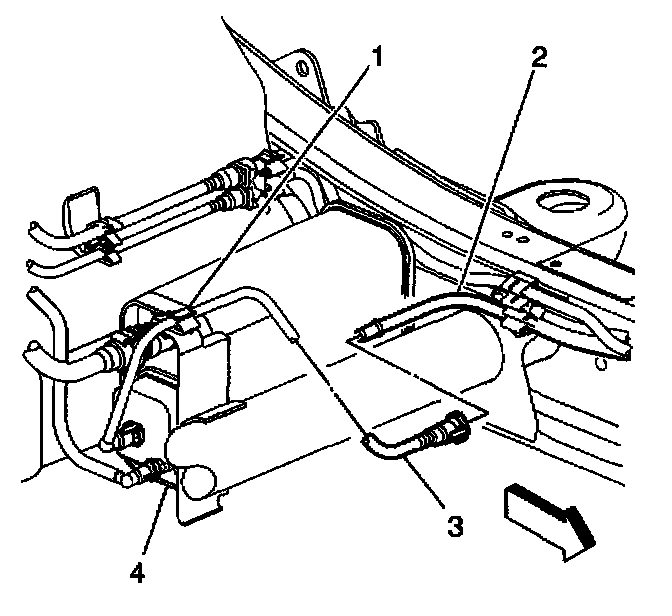

3. Connect the rear EVAP purge pipe (3) to the chassis EVAP purge pipe (2).

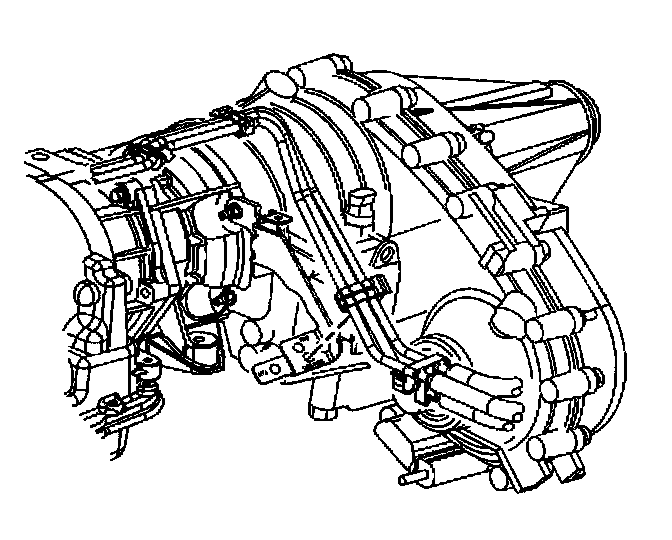

4. Install the EVAP pipe into the transfer case bracket clip, 4-wheel drive only.




5. Install the EVAP pipe into the transmission bracket clip.
6. Install the EVAP pipe into the bellhousing stud clip (4).
7. Lower the vehicle.
8. Remove the cap from the engine compartment EVAP pipe.
9. Connect the engine compartment EVAP pipe (6) to the chassis EVAP pipe (3).
