Muffler: Service and Repair

Muffler Replacement

Removal Procedure

Caution: Refer to Hot Exhaust System Caution in Service Precautions.

Caution: Refer to Exhaust Parts Removal Caution in Service Precautions.





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

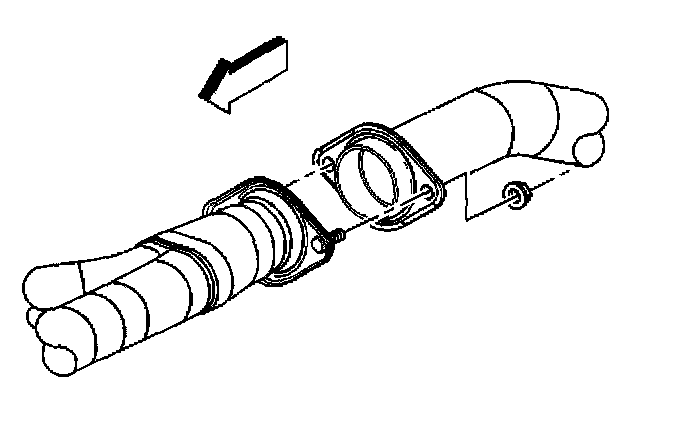

2. Remove the exhaust muffler nuts.
3. Install adjustable jack stands under the rear axle, if necessary.

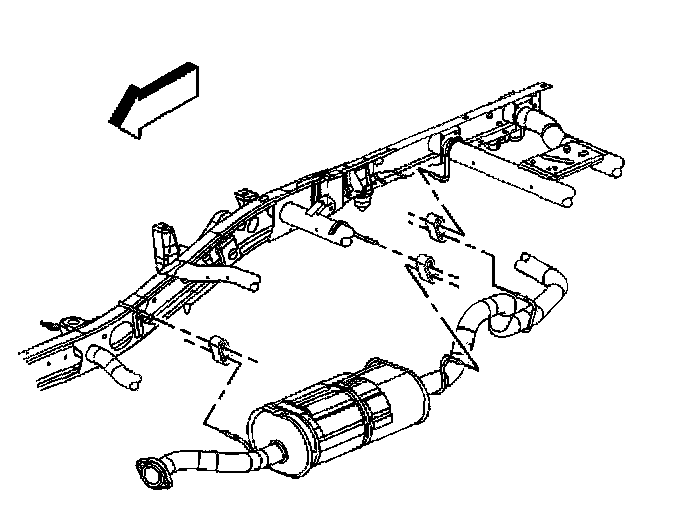

4. Remove the muffler from the insulators.
5. Remove the exhaust muffler.

Installation Procedure

Notice: Refer to Exhaust System Clearance Notice in Service Precautions.





1. Apply lubricant to the exhaust insulators in order to aid in installation.
2. Install the muffler to the insulators.





Notice: Refer to Fastener Notice in Service Precautions.

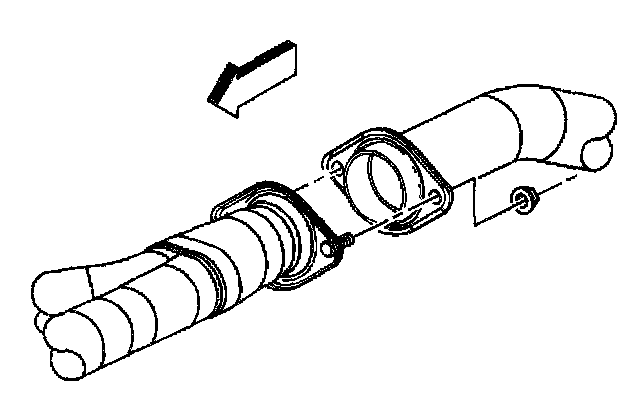

3. Install the exhaust muffler nuts.
^ Tighten the exhaust muffler nuts to 40 Nm (30 ft. lbs.).
4. Remove the adjustable jack stands from under the rear axle, if necessary.
