Exhaust Heat Shield Replacement

Exhaust Heat Shield Replacement

Removal Procedure





1. Remove the exhaust muffler.

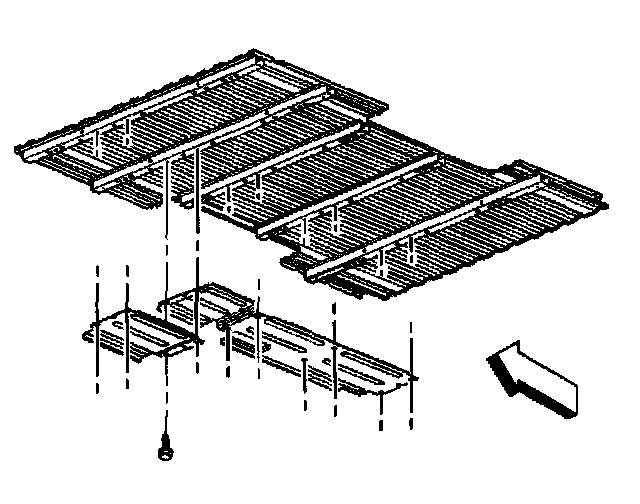

2. If equipped with a 6 112 ft box, remove the exhaust heat shield bolts.
3. Remove the exhaust heat shield.

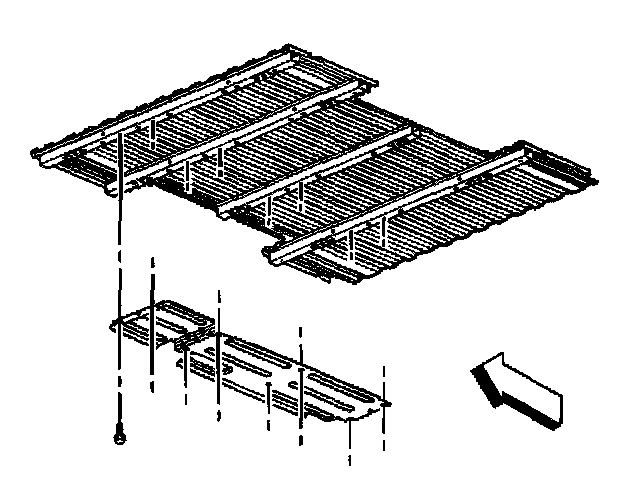

4. If equipped with a 8 ft box, remove the exhaust heat shield bolts.
5. Remove the exhaust heat shield.

Installation Procedure





1. if equipped with a 8 ft box, install the exhaust heat shield.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the exhaust heat shield bolts.
^ Tighten the exhaust heat shield bolts to 9 Nm (80 inch lbs.).

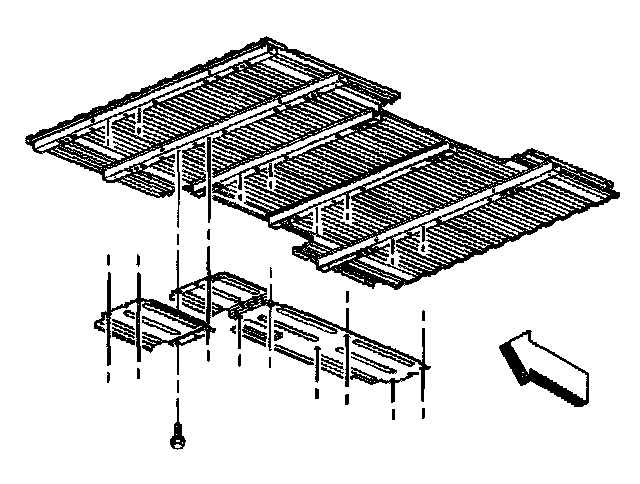

3. if equipped with a 6 1/2 ft box, install the exhaust heat shield.
4. Install the exhaust heat shield bolts.
^ Tighten the exhaust heat shield bolts to 9 Nm (80 inch lbs.).
5. Install the exhaust muffler.
