Surge Tank Hose Replacement - Inlet
Surge Tank Hose Replacement - InletRemoval Procedure
1. Drain the cooling system.
2. Reposition the surge tank inlet hose clamp at the radiator.

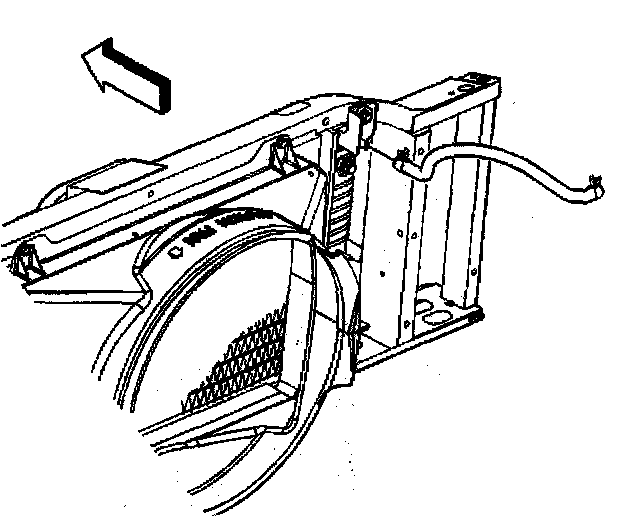

3. If equipped with a 4.3L, 4.8L, 5.3L, 6.0L, or 8.1L engine, remove the surge tank inlet hose from the radiator.

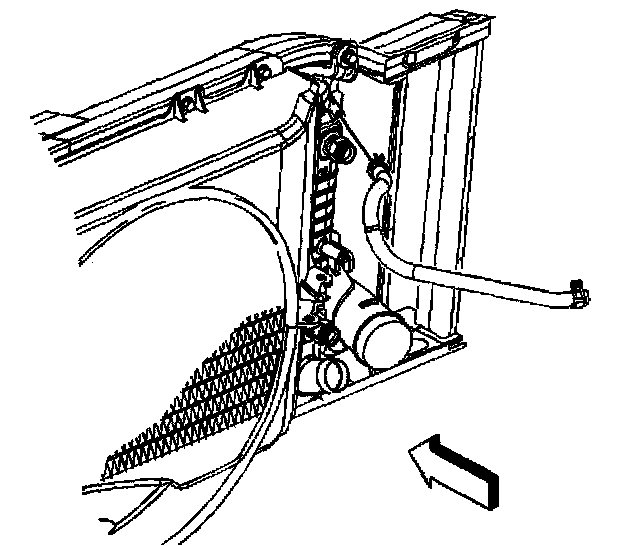

4. If equipped with a 6.6L engine, remove the surge tank inlet hose from the radiator.
5. Reposition the surge tank inlet hose clamp at the surge tank.
6. If equipped with a 4.3L, 4.8L, 5.3L, 6.0L, or 8.1L engine, remove the surge tank inlet hose (1) from the surge tank.
7. If equipped with a 6.6L engine, remove the surge tank inlet hose (1) from the surge tank.
Installation Procedure
1. If equipped with a 6.6L engine, install the surge tank inlet hose (1) to the surge tank.
2. If equipped with a 4.3L, 4.8L, 5.3L, 6.0L, or 8.1L engine, install the surge tank inlet hose (1) to the surge tank.
3. Position the surge tank inlet hose clamp at the surge tank.
4. If equipped with a 6.6L engine, install the surge tank inlet hose to the radiator.
5. If equipped with a 4.3L, 4.8L, 5.3L, 6.0L, or 8.1L engine, install the surge tank inlet hose to the radiator.
6. Position the surge tank inlet hose clamp at the radiator.
7. Fill the cooling system.
