Engine Mount Bracket Replacement - Left

Engine Mount Bracket Replacement - Left

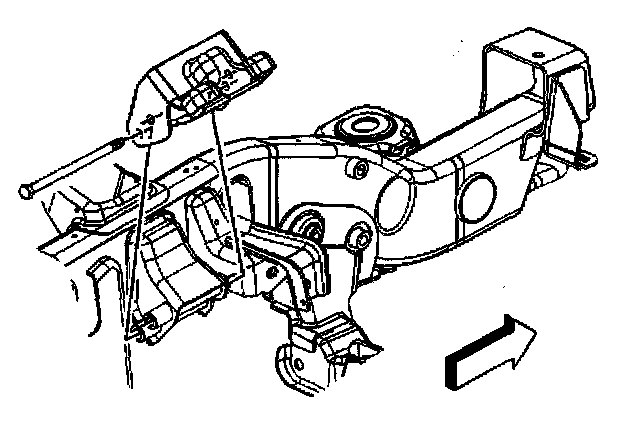

Removal Procedure





1. Remove the engine mount.
2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

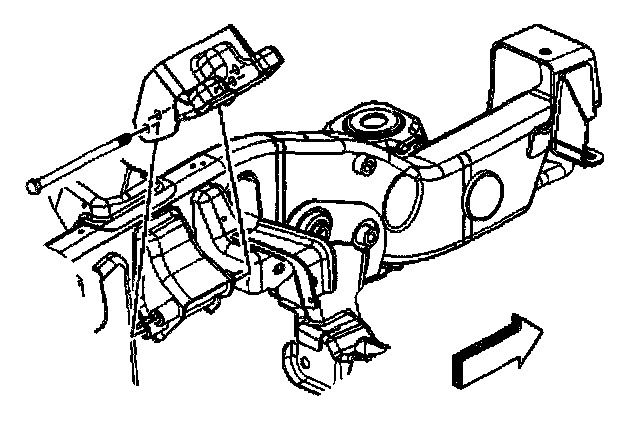

Installation Procedure





1. Install the engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount bracket bolts.
- Tighten the engine mount bracket bolts to 75 Nm (55 ft. lbs.).
3. Install the engine mount.
