Main Relay

K6300 DME relay Part 1:

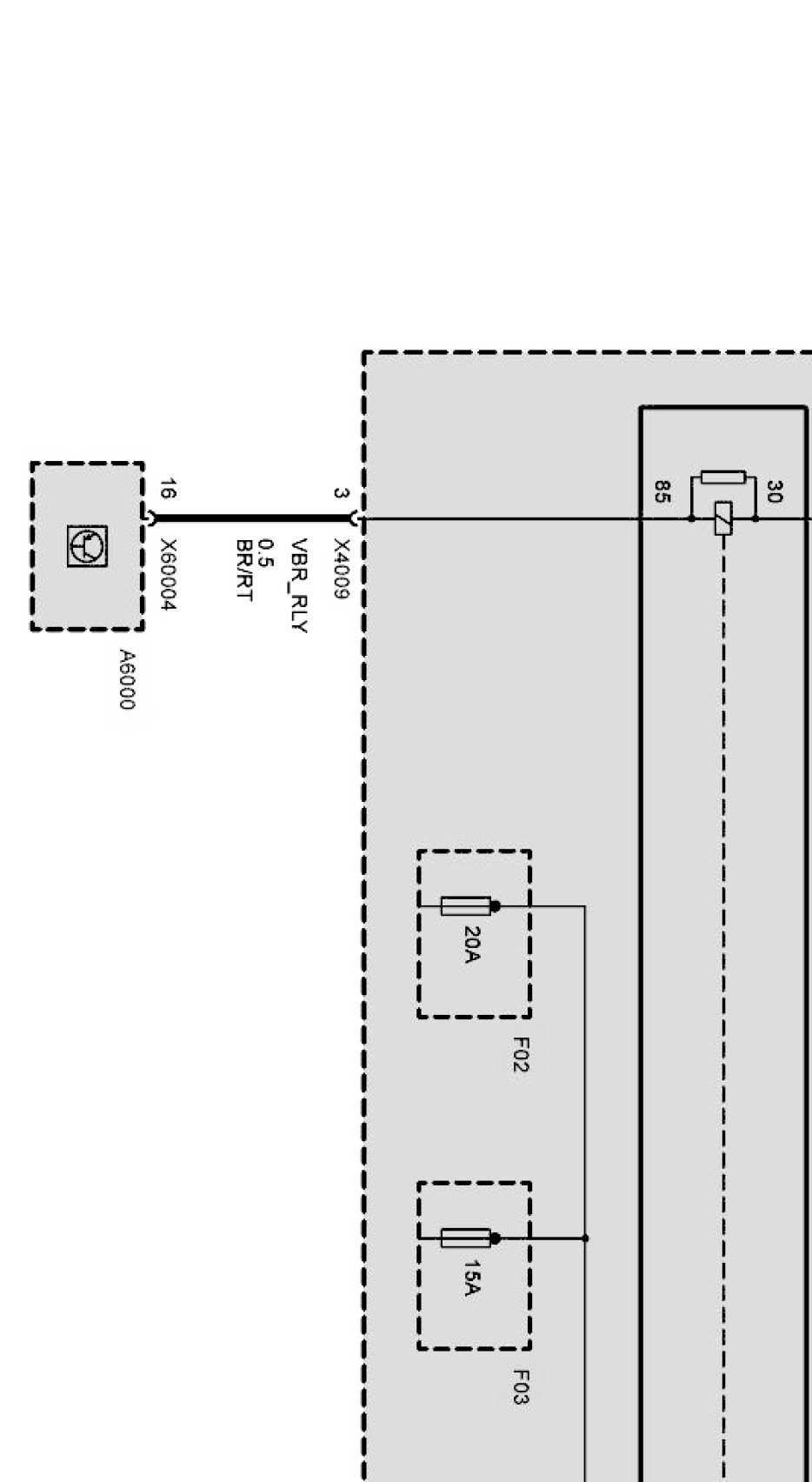

K6300 DME relay Part 2:

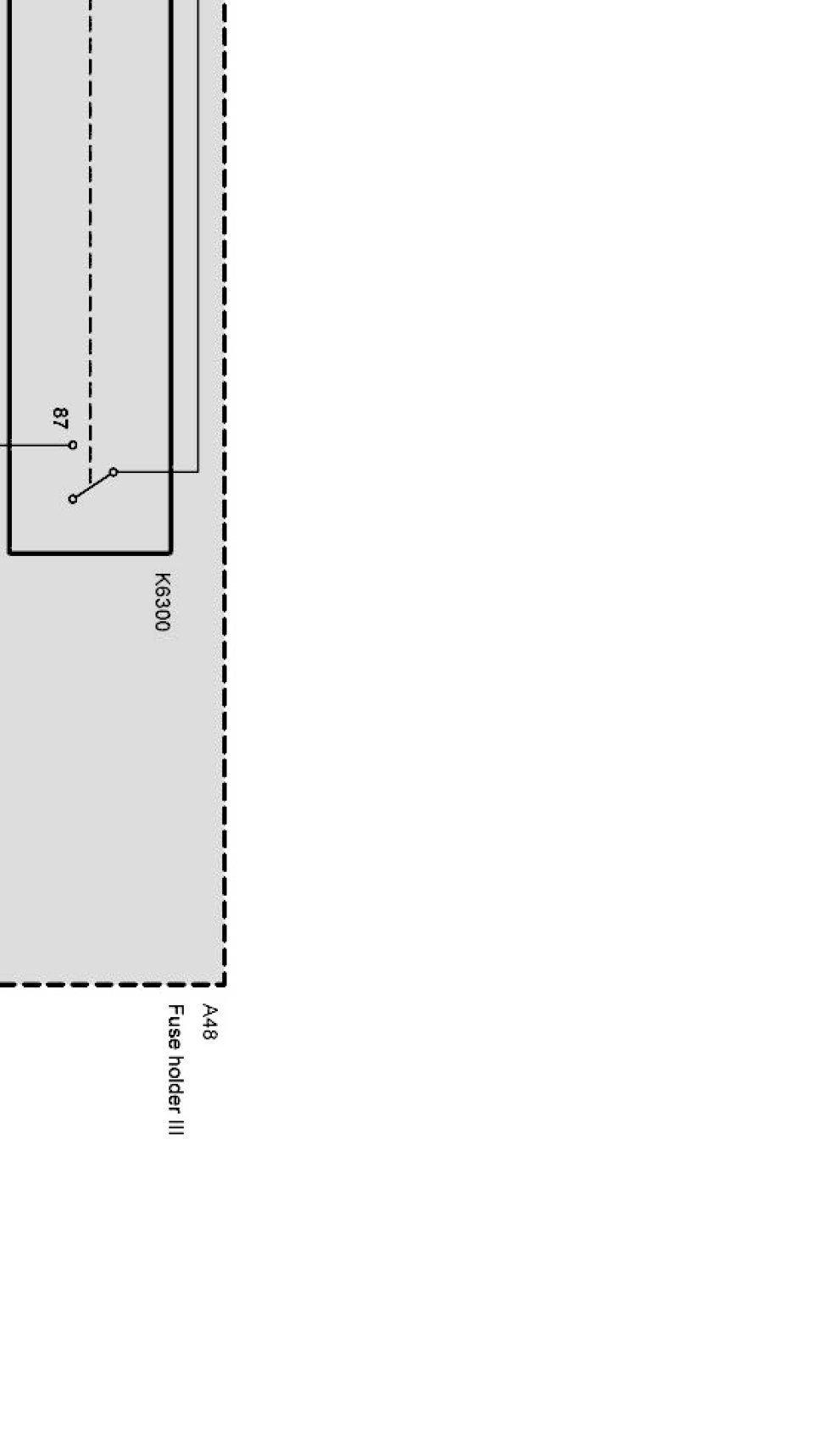

K6300 DME relay Part 3:

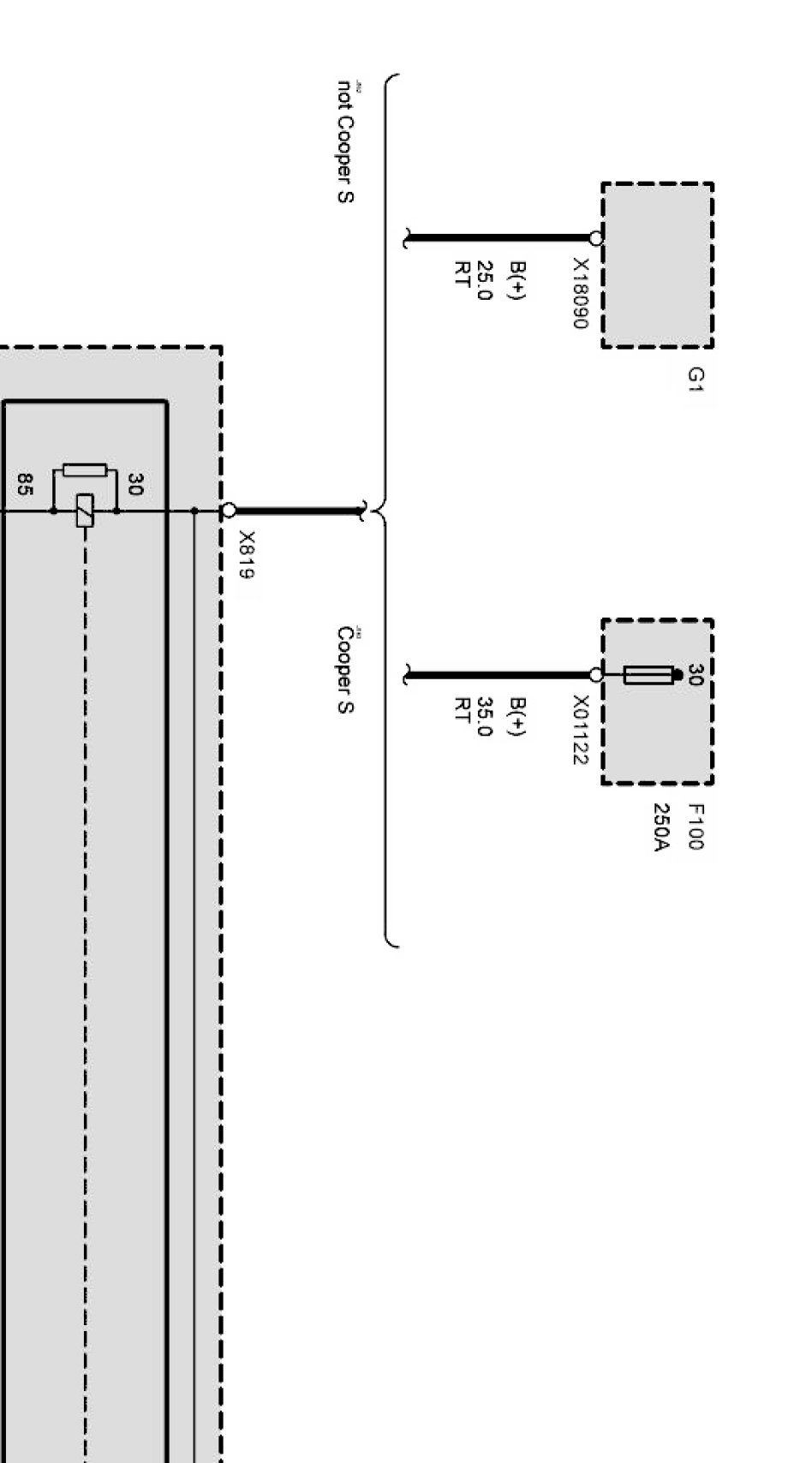

K6300 DME relay Part 4:
