Replacing Windshield Wiper Arm

Removing And Installing/Replacing Windshield Wiper Arm

Special tools required:
- 61 2 100

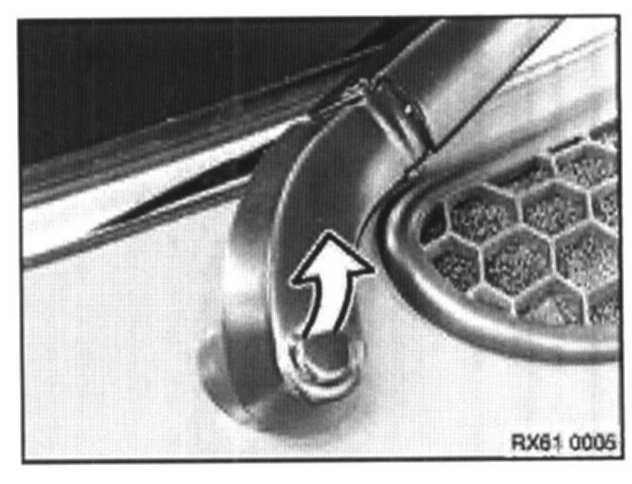

Remove protective cap.

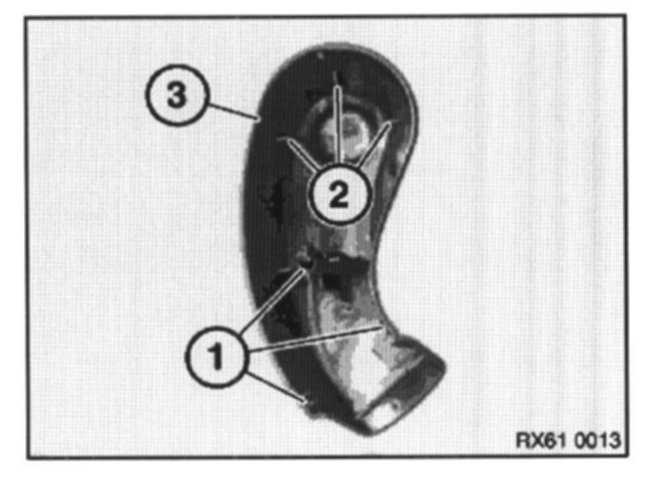

Catches (1) and mounts (2) of protective cap (3) must not be damaged.

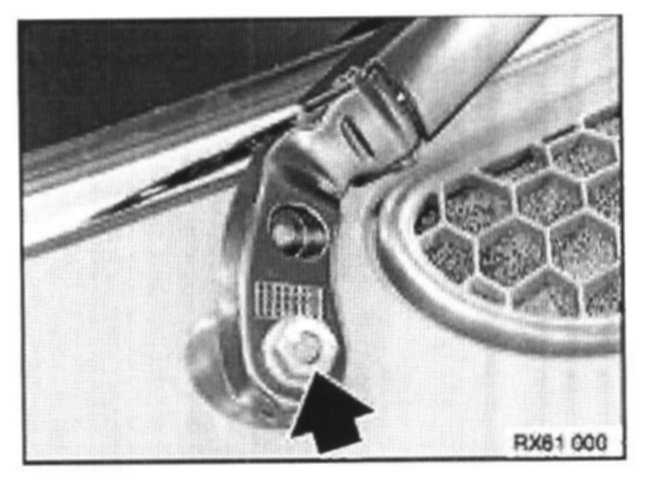

Remove nut.

Installation:
Tightening torque 18 Nm.


CAUTION
Do not bend windshield wiper arm when removing (risk of breakage).

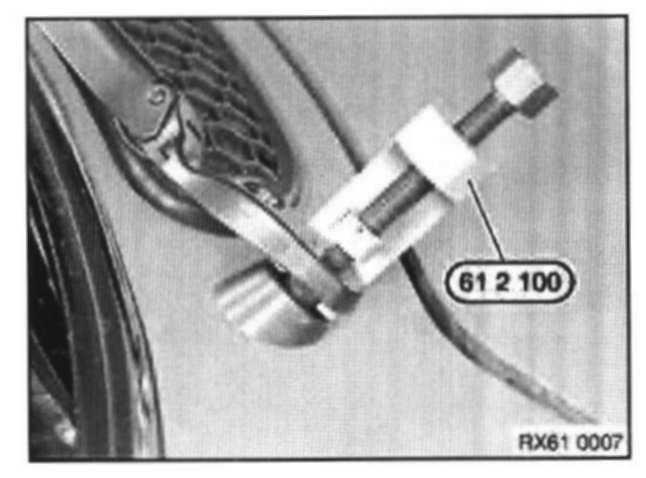

Detach windshield wiper arm with special tool 61 2 100.

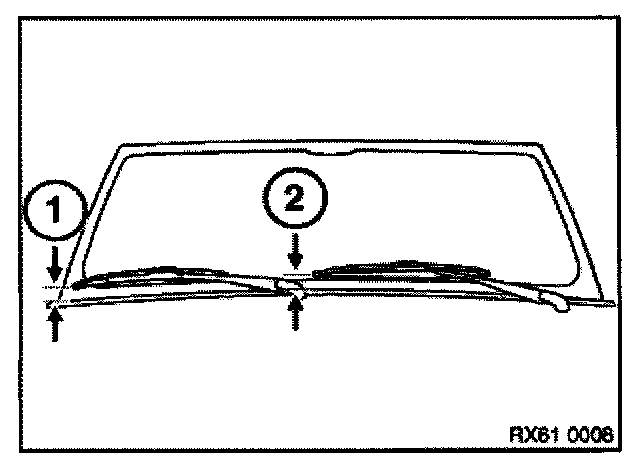

Set position of relevant wiper arm to rest position and then tighten wiper arm retaining nut.
1. 59 mm
2. 60 mm
Tightening Torque 18 Nm.
