Adjusting Windshield Washer Spray Nozzles

Adjusting Windshield Washer Spray Nozzles

Special tools required:
- 00 9 200







Twin nozzle system

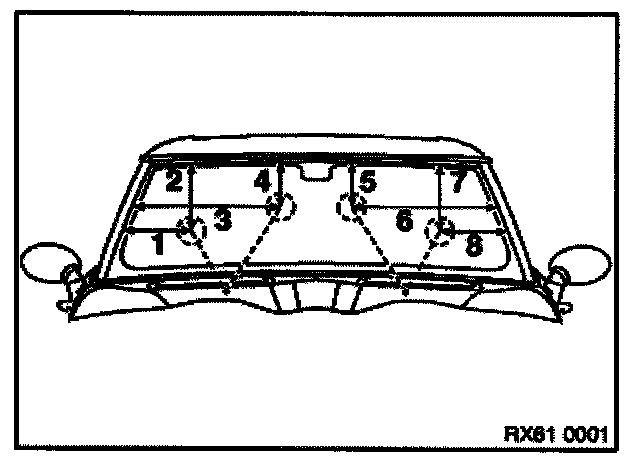

Mark the contact points with adhesive tape or felt pen and operate the washer unit. The spray jets should strike the centre of this field.

Adjustment values in mm
1 = 240
2 = 340
3 = 510
4 = 230
5 = 230
6 = 510
7 = 340
8 = 240







Mark points of contact with adhesive tape.

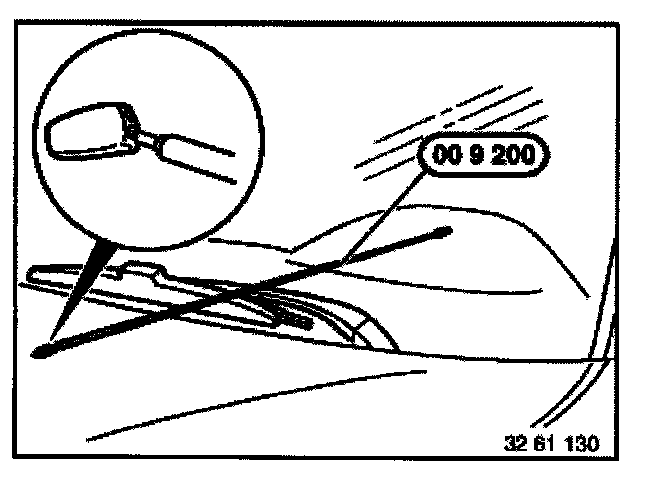

Adjust spray nozzles using special tool 00 9 200.
