Replacing Fresh-Air Grill Center

Removing And Installing/Replacing Fresh-Air Grill Center


CAUTION!
Care must be taken to prevent damage to adjacent trim.

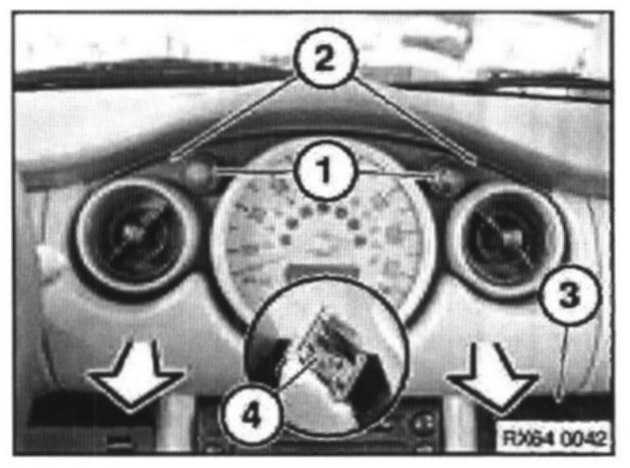

Unclip trim from switches (1).
Remove screws on upper side of instrument cluster (2).
Remove screw (3).


NOTE: Screw is located on passenger airbag side only.


Remove trim in direction shown.

Install hint:
Replace retaining clips (4) on rear of trim if damaged.

Ensure foam block is correctly located behind instrument cluster trim panel.

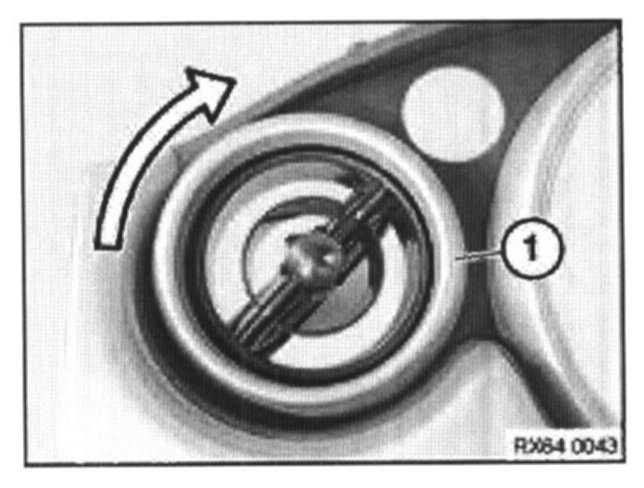

Turn air vent surround (1) and pull forwards to remove.

Install hint:
Ensure surrounds are correctly locked back into position.

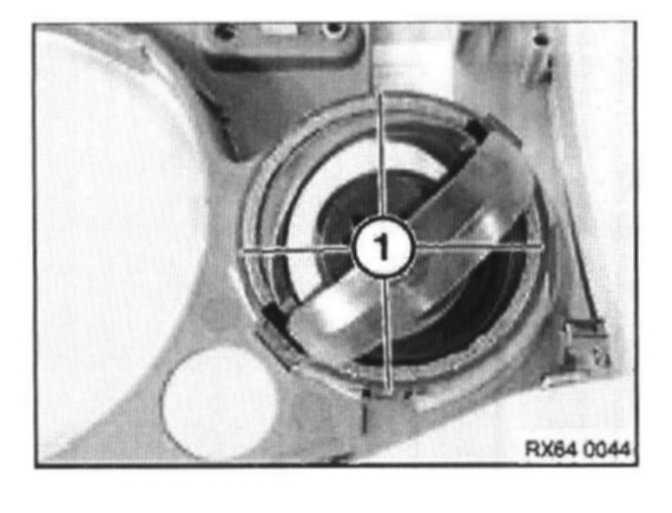

Release clips (1) and remove air vents.
