Replacing Left/Right Fresh-Air Grill

Removing And Installing/Replacing Left/Right Fresh-Air Grill


CAUTION!
Care must be taken to prevent damage to adjacent trim.


NOTE: The air vent surround trim on the passenger airbag side has two lower retaining screws.

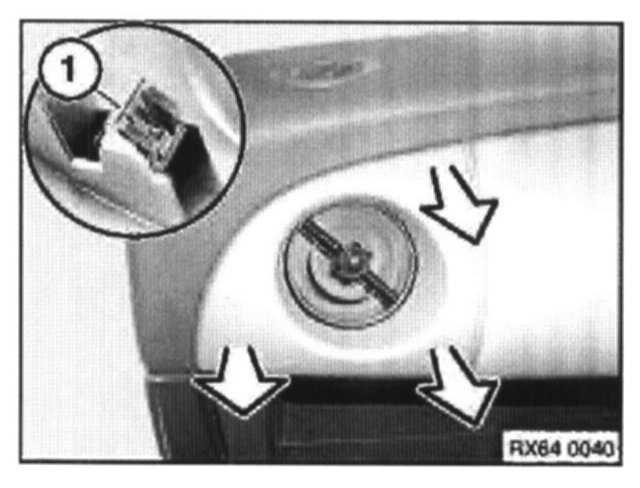

Unclip air vent surround trim and remove in direction shown.

Install hint:
Replace retaining clips (1) on rear of trim if damaged.

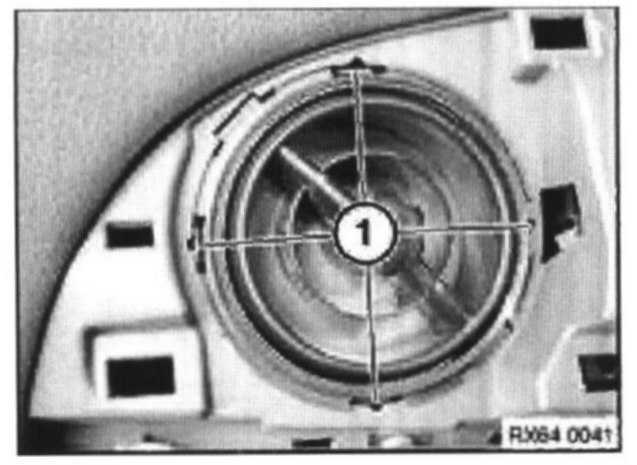

Release clips (1) and remove air vent from air duct.
