Plug Housing, LCC Contact (Load Current Contact)

Plug Housing, LCC Contact (Load Current Contact)

Special tools required:
- 61 1 200







Socket housing:

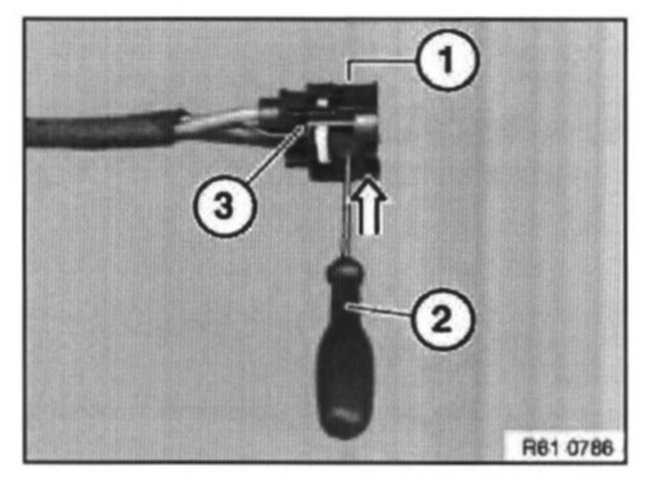

Press lock (1) with suitable tool (2) in the direction of socket housing (3).

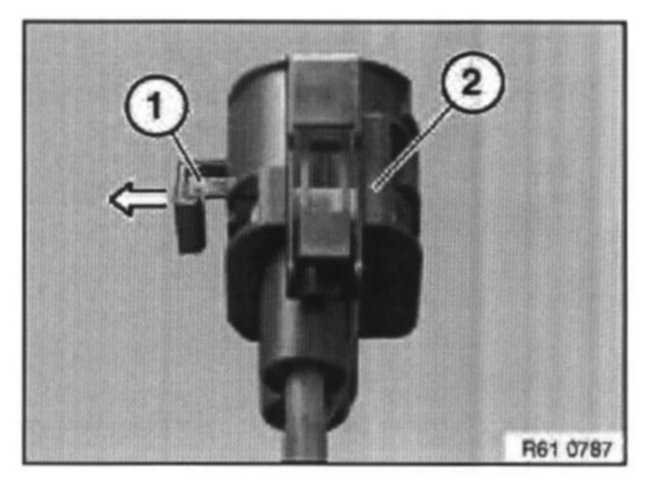

Pull lock (1) out of socket housing (2).

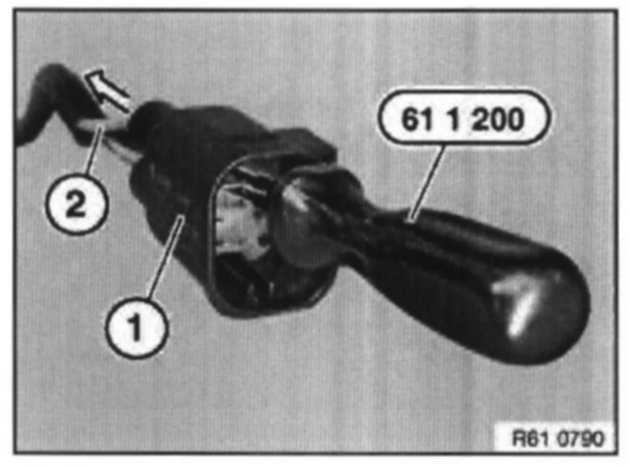

Insert special tool 61 1 200 into socket housing (1) and pull out lead with LCC contact (2) in direction of arrow.







Pin housing:

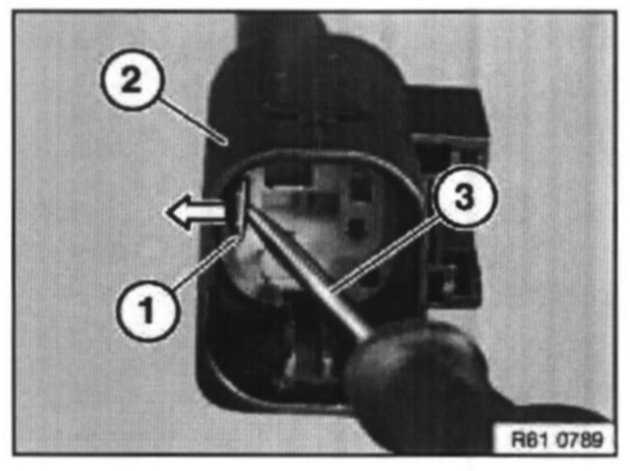

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in direction of arrow.

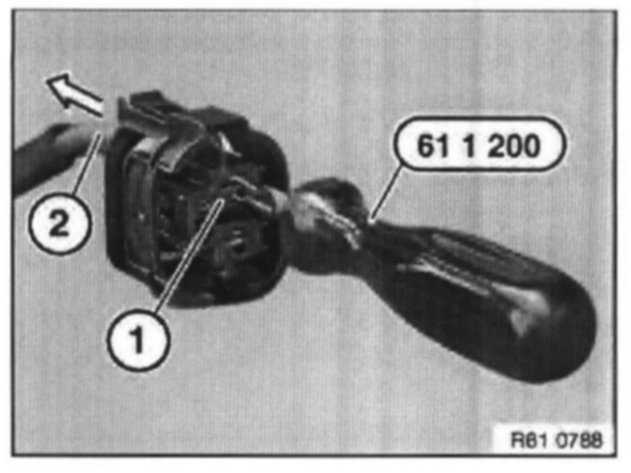

Insert special tool 61 1 200 into pin housing (1) and pull out lead with LCC contact (2) in direction of arrow.
