Transmission Mount: Service and Repair

22 31 005 - Removing and installing/replacing transmission support bracket





Necessary preliminary tasks:
- Remove air cleaner housing .
- Remove battery compartment (W10 only).

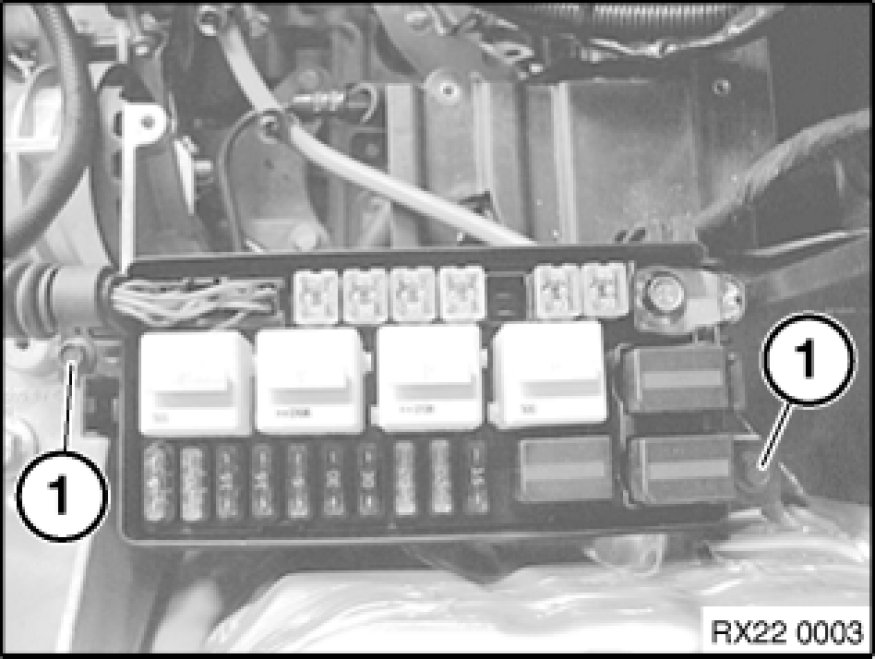

Release screws (1).
Push fuse box to one side.
Tightening torque, 61 13 1AZ.





Secure engine in installation position .

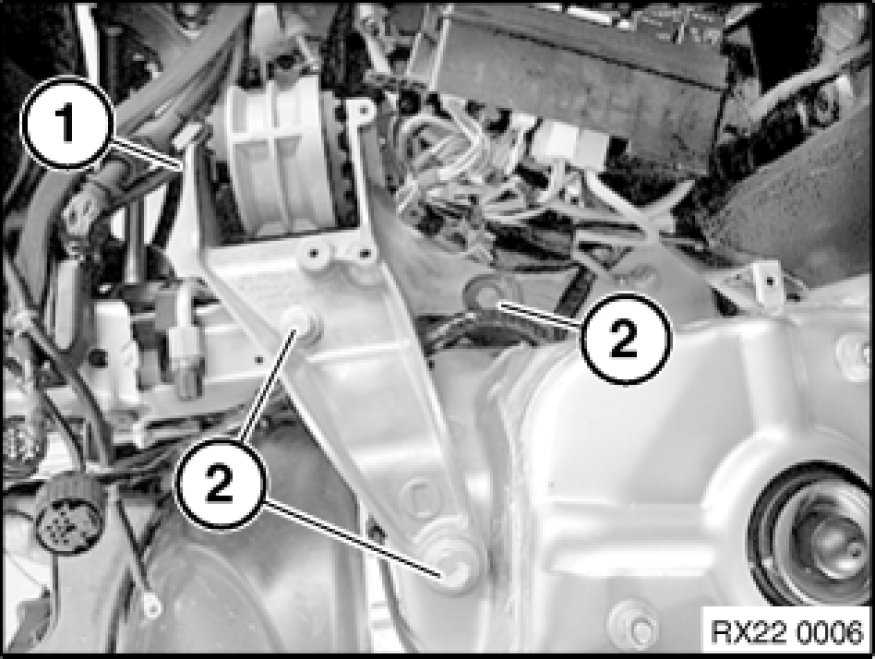

Release screw (1).
Tightening torque, 22 32 3AZ [1][2]Specifications.
Release screws (2).
Tightening torque 22 32 2AZ [1][2]Specifications.
Remove transmission support bracket.
